Exclusive Advantages of the TTD Series Flexible Curtain LED Panel
Superior Durability
- High-strength aluminum frame: rigid, lightweight structure that resists bending and physical stress.
- Sealed LED modules: protection against dust, moisture and environmental wear.
- Low-maintenance design: Durable components reduce repair costs and downtime.
Exceptional Visual Quality
- Wide Pixel Pitch Options: (1.9-15.625mm) Supports fine details for close-up viewing and crisp images for long-distance displays.
- High brightness up to 5,000 nits: Delivers vivid visuals that stay sharp even in strong ambient light.
- Lifelike color accuracy: Advanced LED technology ensures rich, consistent colors across the entire display.
Complete Adaptability
- Customizable sizes: Standard 1000 x 2000 x 5000 mm panels can be adapted to fit glass walls, display cases or irregular spaces.
- Indoor and outdoor use: High gloss and durable structure make it suitable for shopping malls, exhibitions, showrooms and exterior facades.

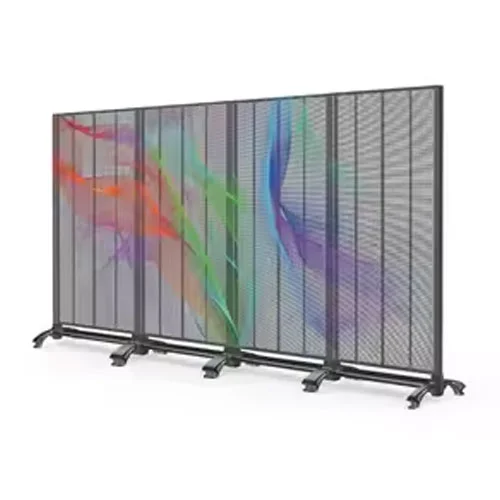

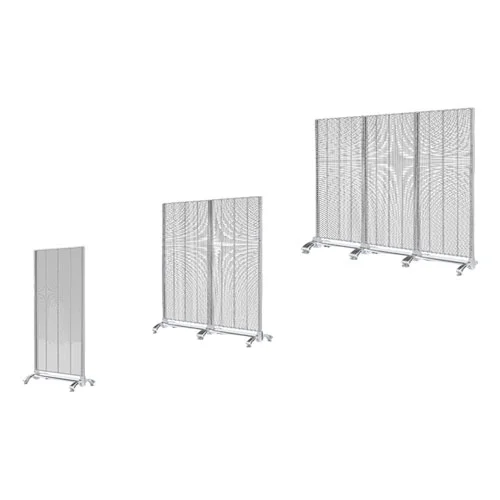

- Scalable modular design: Panels can be easily combined to create small displays or large advertising walls.
Comprehensive Support
- 24/7 Remote Technical Support: Access expert assistance anytime, anywhere.
- 5% of spare parts included: Each order includes additional components to increase reliability and provide peace of mind.
- 3-Year Extended Warranty: Enjoy long-term convergence for better performance and reliable service.
Product details

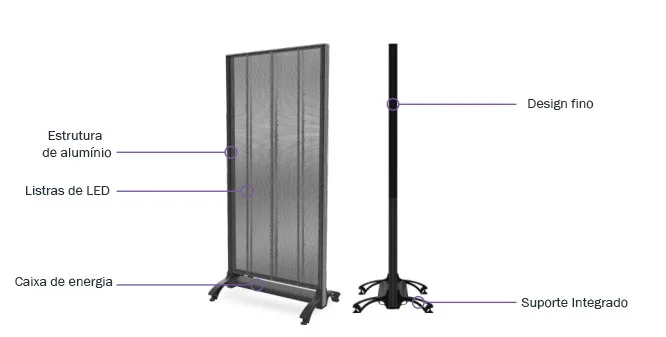

- The TTE Transparent LED Totem series is constructed with a slim aluminum frame, integrated LED strips, a hidden power box, and a stable stand, offering a durable and easy-to-maintain display solution.

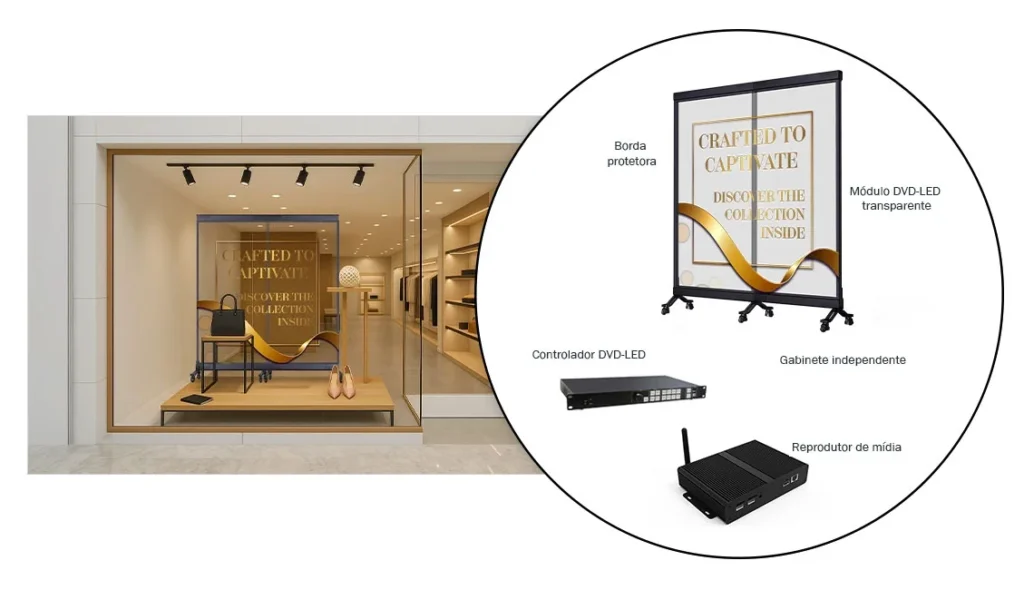

- Transforms glass into vibrant digital signage, preserving natural light and visibility. Perfect for stores and showrooms, it highlights your brand, attracts customers, and keeps spaces open and inviting.

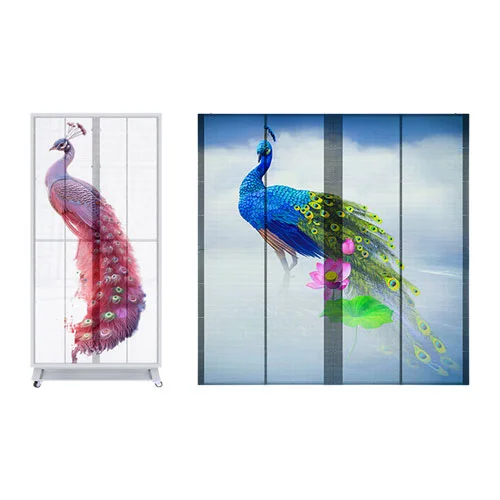

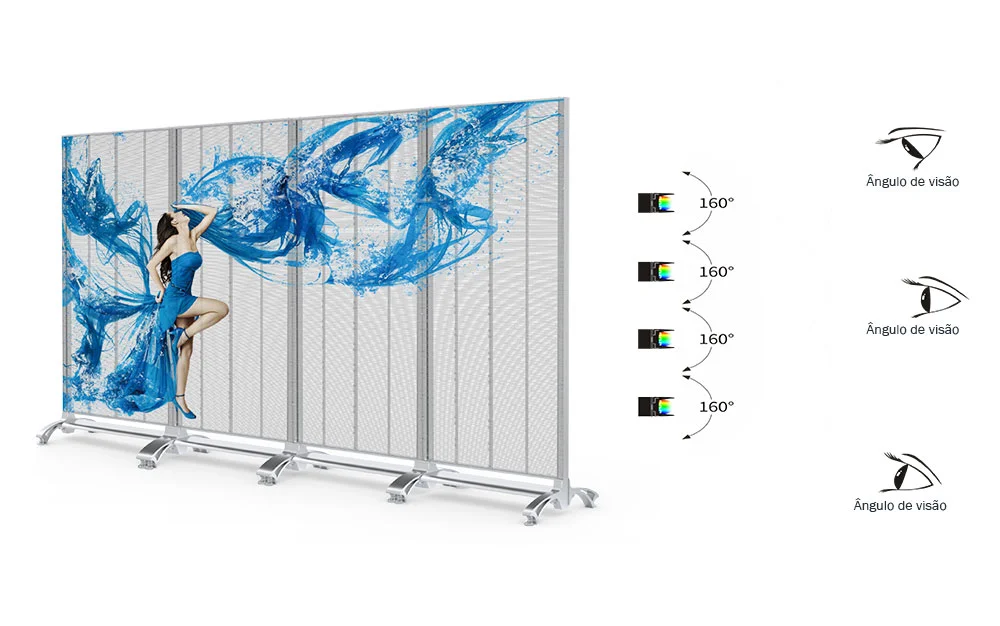

- With a wide 160° viewing range, the monitor delivers crisp images from different positions. You can view content without color distortion or loss of brightness, maintaining vibrant colors and sharp image quality.

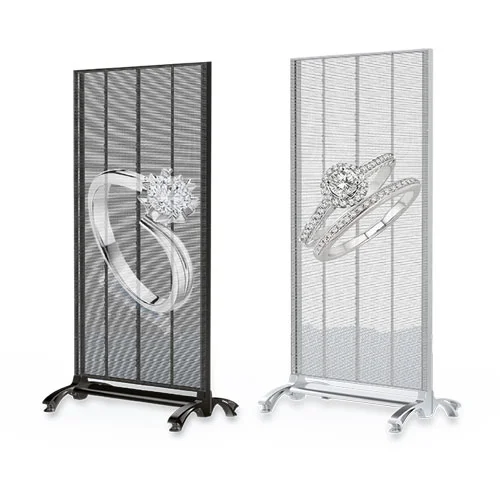

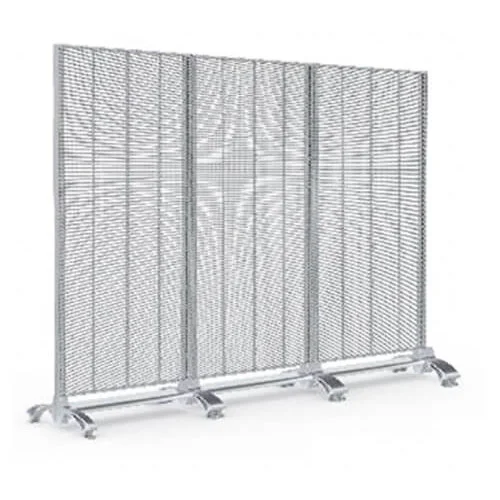

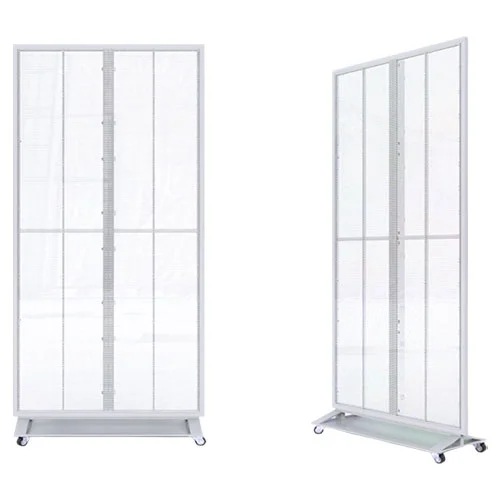

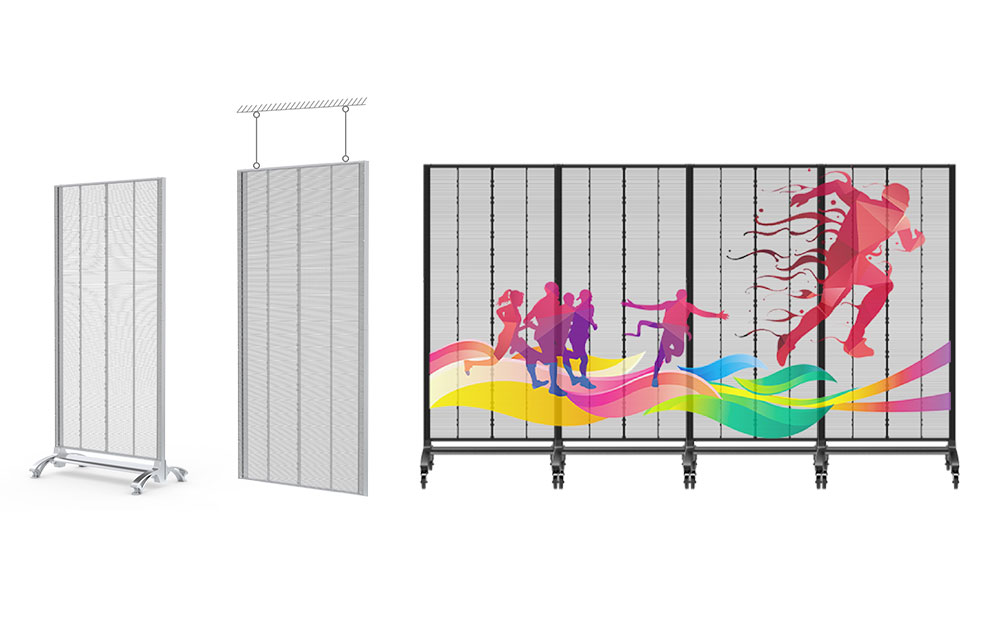

- It can be installed as a floor stand with a fixed or mobile base, suspended, double-sided, or cascaded. Its adaptable design makes it suitable for a variety of event configurations and applications.
- LED displays are packaged according to their type and intended application. Fully assembled units are packed in wooden crates or reinforced cardboard packaging to ensure stability during transport. LED modules receive extra protection, often packaged in reinforced boxes or sealed crates with additional wooden framing, which increases safety.
| Product model | TTE1 | TTE 2 | TTE 3 | TTE 5 | TTE 8 | TTE 10 | TTE 15 |
|---|---|---|---|---|---|---|---|
| Pixel pitch (mm) | 1.9*3.9 | 2.8*5.6 | 3.9*7.8 | 5.2*10.4 | 7.8*7.8 | 10.4*10.4 | 15.625*15.625 |
| Pixel density (dot/m²) | 129,034 | 61,952 | 32,768 | 18,432 | 16,384 | 9,216 | 4,096 |
| Module resolution (points) | 256*16 | 176*22 | 128*16 | 128*16 | 64*16 | 48*12 | 32*8 |
| Cabinet Resolution (points) | 504*128 | 352*88 | 256*64 | 256*64 | 128*64 | 96*48 | 64*32 |
| Transparency | 42% | 45% | 65% | 65% | 65% | 75% | 85% |
| Brightness (nits) | 800~4,500 | 800~5,500 | 800~5,500 | 800~5,500 | 800~5,500 | 800~6,500 | 800~6,500 |
| Power requirements | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz |
| Energy consumption | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² |
| Refresh rate | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz |
| Working temperature | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C |
| Weight | Including support base, 30 kg for 2 m² display or 45 kg for 4 m² display | Including support base, 30 kg for 2 m² display or 45 kg for 4 m² display | Including support base, 30 kg for 2 m² display or 45 kg for 4 m² display | Including support base, 30 kg for 2 m² display or 45 kg for 4 m² display | Including support base, 30 kg for 2 m² display or 45 kg for 4 m² display | Including support base, 30 kg for 2 m² display or 45 kg for 4 m² display | Including support base, 30 kg for 2 m² display or 45 kg for 4 m² display |
| Screen size | 1000*2000*500mm | 1000*2000*500mm | 1000*2000*500mm | 1000*2000*500mm | 1000*2000*500mm | 1000*2000*500mm |
