Exclusive Advantages of the TTC Series Transparent LED Panel
Superior Durability
- It features a robust structure and weather-resistant coating, ensuring stable performance in demanding outdoor conditions.
- The high-brightness module delivers crisp, vibrant visuals and is designed for easy replacement, reducing downtime during maintenance.
Exceptional Visual Quality
- High-brightness external LED modules for crisp, clear images.
- Maintains vivid, accurate colors in direct sunlight.
- Uniform brightness across the screen for balanced visuals.
- Stable imaging performance in all weather and lighting conditions.
Complete Adaptability
- Supports front and back maintenance for flexible services.
- Modular design allows for resizing and reconfiguration.
- Suitable for a wide variety of installation types and environments.
- Suitable for small shop windows and large outdoor displays.
Comprehensive Support
- 24/7 Remote Technical Support: Access expert assistance anytime, anywhere.
- 5% of spare parts included: Each order includes additional components to increase reliability and provide peace of mind.
- 3-Year Extended Warranty: Enjoy long-term convergence for better performance and reliable service.
Product details

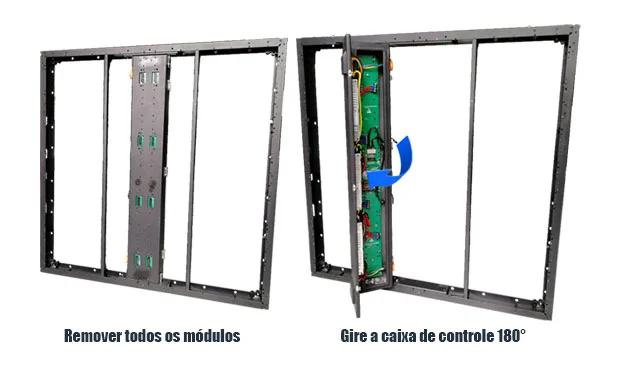

- Designed for quick and easy maintenance. You can detach any module and rotate the control box 180° for quick adjustments. Its adaptable design supports front and rear installation and maintenance, making it suitable for a variety of outdoor applications.

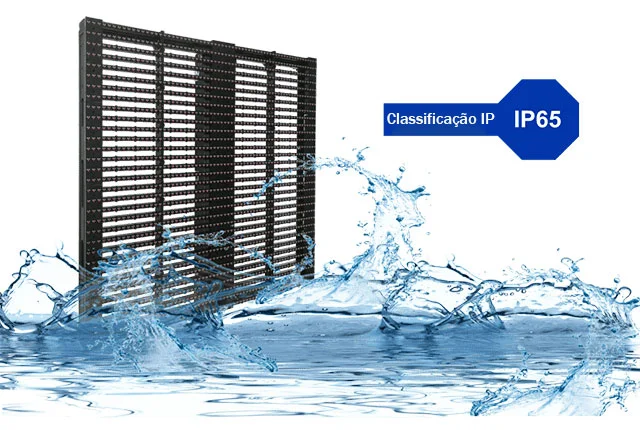

- With an IP65 protection rating, they protect against water and dust. Designed to handle challenging outdoor conditions, they offer reliable performance in any climate.

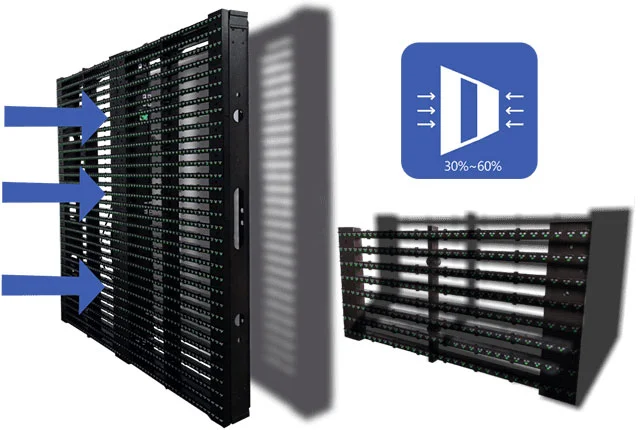

- It offers a transparency ratio of 30% to 60%, allowing clear visibility through the screen while displaying bright, vivid content. This design preserves natural light and open vision.

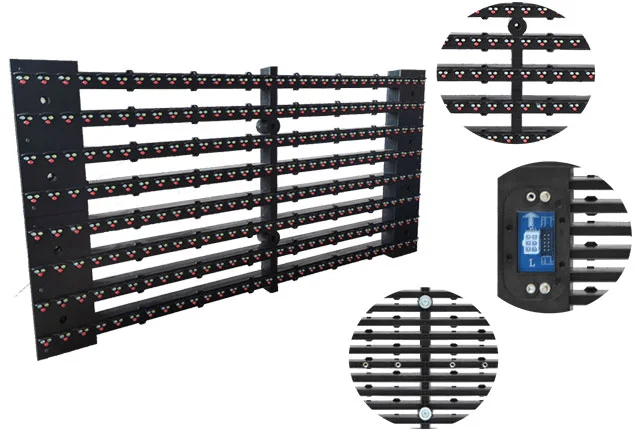

- Utilizes a modular configuration for quick part replacement, easy repairs, and flexible scaling to meet any display needs.
- LED displays are packaged according to their type and intended application. Fully assembled units are packed in wooden crates or reinforced cardboard packaging to ensure stability during transport. LED modules receive extra protection, often packaged in reinforced boxes or sealed crates with additional wooden framing, which increases safety.
| Parameters | TTC0307 | TTC0510 | TTC0612 | TTC0715 | TTC1010 | TTC1212 | TTC1515 | TTC1531D |
|---|---|---|---|---|---|---|---|---|
| Pixel pitch (mm) | 3.91×7.81mm (H*V) | 5.2×10.4mm (H*V) | 6.2×12.5mm (H*V) | 7.8×15.6mm (H*V) | 10.4×10.4mm (H*V) | 12.5×12.5mm (H*V) | 15.6×15.6mm (H*V) | 15.6×31mm (H*V) |
| LED configuration | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD2727 | SMD3535 | SMD3535 | DIP346 |
| Module Size (mm) | 500×125 | 500×125 | 500×125 | 500×250 | 500×125 | 500×125 | 500×250 | 500×250 |
| Module Resolution | 128×16 | 96×24 | 80×10 | 64×16 | 48×12 | 40×10 | 32×16 | 32×8 |
| Cabinet size (mm) | 1000×1000×75 | 1000×1000×75 | 1000×1000×75 | 1000×1000×75 | 1000×1000×75 | 1000×1000×75 | 1000×1000×75 | 1000×1000×85 |
| Module Resolution | 256×128 | 192×96 | 160×80 | 128×64 | 96×96 | 80×80 | 64×64 | 64×32 |
| Cabinet weight (kg) | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 |
| Transparency Fee | 42% | 45% | 35% | 50% | 45% | 35% | 50% | 56% |
| Brightness (cd/m²) | 5000/8000 | 6000/8000 | 6000/8000 | 7000/8500 | 5500/8000 | 6000/8000 | 7000/8500 | 8000/10000 |
| Maximum power consumption | 800W/m² | 800W/m² | 800W/m² | 800W/m² | 800W/m² | 800W/m² | 800W/m² | 360W/m² |
| Average energy consumption | 230W/m² | 230W/m² | 230W/m² | 230W/m² | 230W/m² | 230W/m² | 230W/m² | 100W/m² |
| Refresh rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| IP Rating (Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Installation type | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back |
| Type of maintenance | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back |
