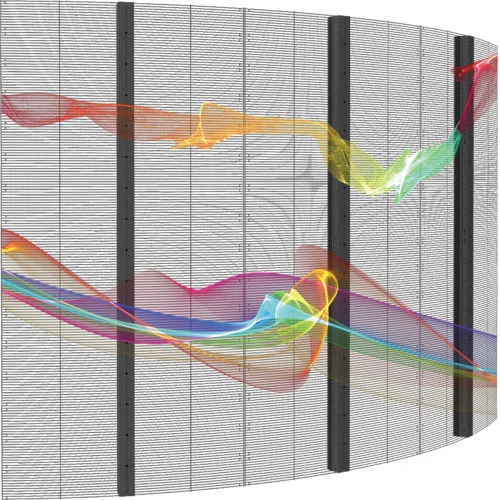

Exclusive Advantages of the TTG Series Translucent LED Panel
Superior Durability
- Robust structural design: frameless yet reinforced construction that withstands continuous stress.
- Long-life LED chips: Rated for over 100,000 hours of operation with stable brightness, reducing replacement frequency and lowering maintenance costs.
- Protective coating and sealed modules: additional protection against dust, moisture and accidental contact, making the display more resistant for outdoor installation.
Exceptional Visual Quality
- Ultra-high brightness (up to 5,500 nits): Keeps the image clear and sharp even in bright sunlight or bright indoor environments.
- Pixel fine tuning options (P1.98 – P15.6): Allows you to adjust the resolution to the viewing distance.
- High refresh rate (≥3840Hz): Delivers smooth, flicker-free playback for fast-motion graphics, live streams, and high-quality video content.
Complete Adaptability
- Customizable diameters starting at 640 mm give you the freedom to design everything from compact retail spaces to large-scale installations.
- The pixel pitch range of 1.9mm to 16.5mm allows precise adjustments for viewing distance and visual performance needs.
- Support for indoor and outdoor applications makes the display versatile for shopping malls, exhibitions, airports and event venues.
Comprehensive Support
- 24/7 Remote Technical Support: Access expert assistance anytime, anywhere.
- 5% of spare parts included: Each order includes additional components to increase reliability and provide peace of mind.
- 3-Year Extended Warranty: Enjoy long-term convergence for better performance and reliable service.
Product details

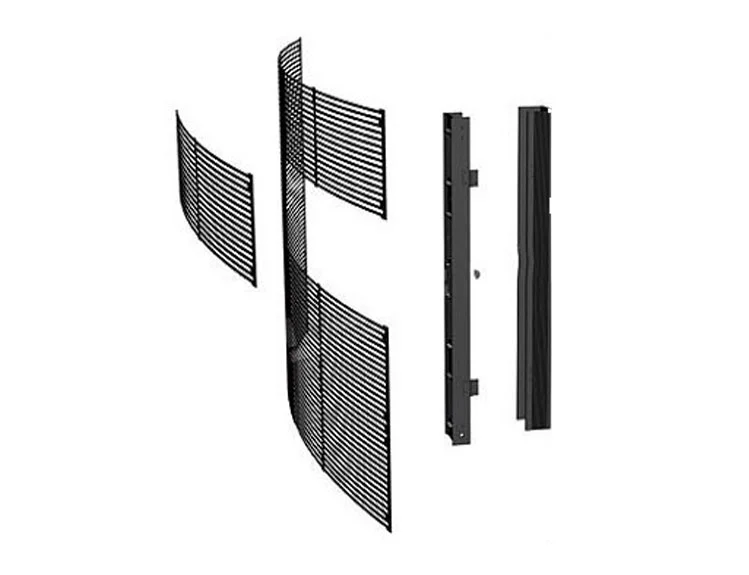

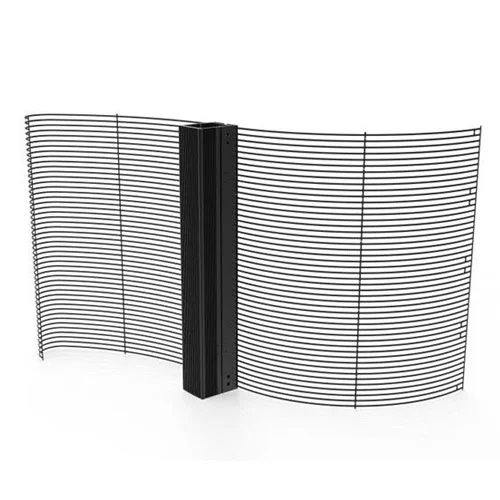

- The design is simplified and efficient, taking up minimal space and ensuring ease of maintenance, allowing for quick replacement of light panels, significantly reducing maintenance costs.

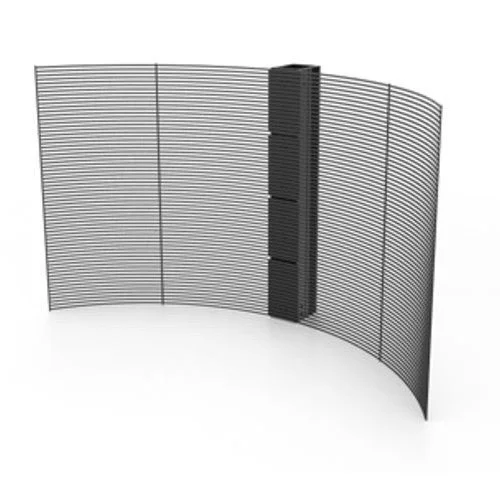

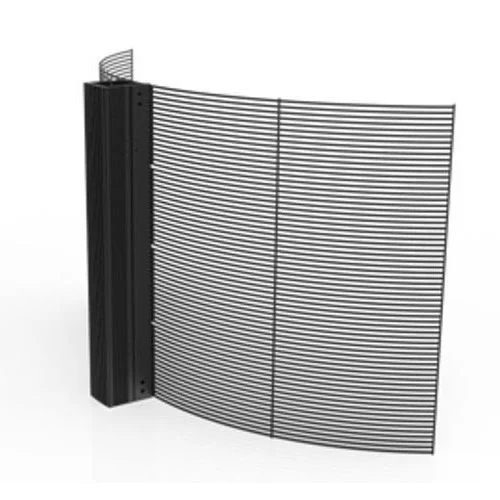

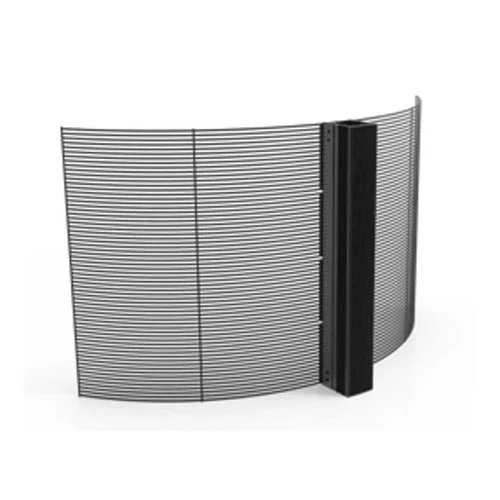

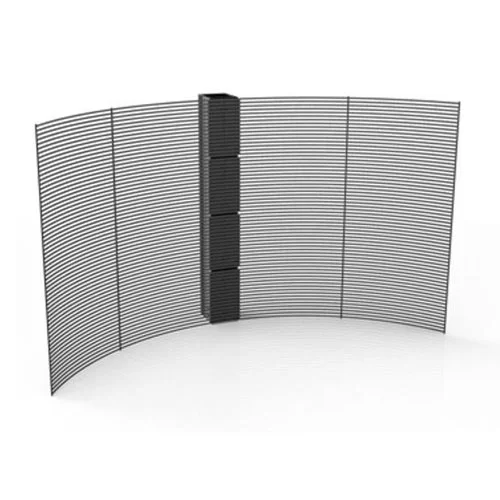

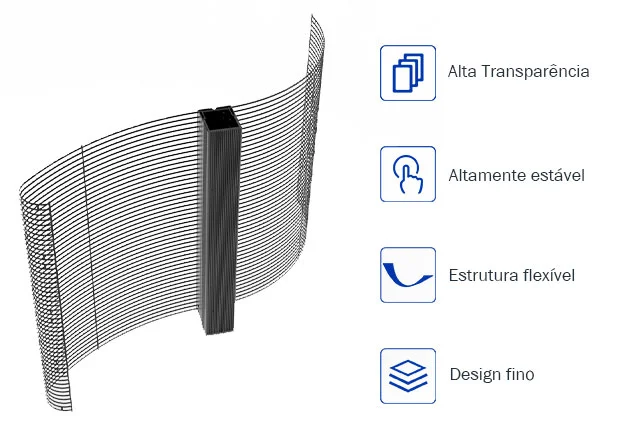

- It features a flexible, modular design that supports a variety of installation methods, including surface-mount configurations. Its customizable connection options allow for specific requirements, such as curved installation, allowing for adaptation to complex designs and unique layouts.

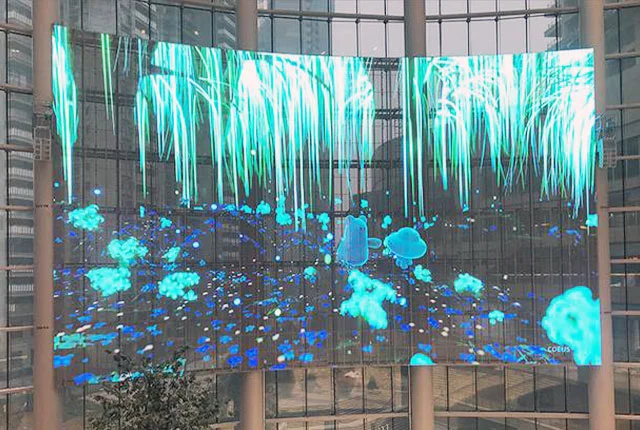

- It delivers sharp, vivid images. With high resolution and intense brightness, it displays images and videos with rich colors and enhanced contrast. This ensures a clear, dynamic viewing experience for viewers, both day and night.
- LED displays are packaged according to their type and purpose. Fully assembled units are typically shipped in wooden crates or reinforced cardboard boxes to maintain stability during transport. To protect against dust mites, LED modules are often packaged in reinforced boxes or sealed wooden frames. This method increases durability during handling and overall safety.
| Product model | TTG 1 | TTG 2 | TTG 3 | TTG 5 | TTG 8 | TTG 10 | TTG 15 |
|---|---|---|---|---|---|---|---|
| Pixel pitch (mm) | 1.9*3.9 | 2.8*5.6 | 3.9*7.8 | 5.2*10.4 | 7.8*7.8 | 10.4*10.4 | 15.625*15.625 |
| Pixel density (dots/m²) | 129,024 | 61,952 | 32,768 | 18,432 | 16,384 | 9,216 | 4,096 |
| Module resolution (points) | 252*16 | 176*22 | 128*16 | 96*12 | 64*16 | 48*12 | 32*8 |
| Cabinet Resolution (points) | 504*128 | 352*88 | 256*64 | 192*48 | 128*64 | 96*48 | 64*32 |
| Transparency | 42% | 45% | 65% | 75% | 65% | 75% | 85% |
| Brightness (nits) | 800~4,500 | 800~5,500 | 800~5,500 | 800~5,500 | 800~5,500 | 800~6,500 | 800~6,500 |
| Power requirements | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz | AC 220V±10%; 50Hz |
| Energy consumption | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² | Max: 800W/m²; Avg: 260W/m² |
| Refresh rate | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz |
| Operating temperature | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C |
| Weight | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² |
| Cabinet size | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm |
