Exclusive Advantages of the TID Series Conference Room LED Display
Superior Durability
- Magnesium alloy enclosure with fully sealed back for dust resistance and long-term reliability.
- High-quality LED modules with stable rigid connection design ensure consistent performance and reduced maintenance needs.
Exceptional Visual Quality
- The 3840Hz refresh rate and 6000:1 contrast ratio deliver smooth, flicker-free playback with deep blacks and vivid colors for a professional visual experience.
- Wide 160° horizontal and 140° vertical viewing angles keep images clear and accurate from virtually any position in the room.
Complete Adaptability
- 4:3 screen aspect ratio supports 4:3 and 16:9 screen configurations for different room layouts.
- Multiple pixel pitch options (P1.23-P4.0) to meet viewing distance and resolution needs.
Comprehensive Support
- 24/7 Remote Technical Support: Get assistance whenever you need it, wherever you are.
- 5% of spare parts supplied: Each shipment includes extra components for added reliability and peace of mind.
- 3-Year Extended Warranty: Benefit from long-term protection for better performance and reliable support.
Product details

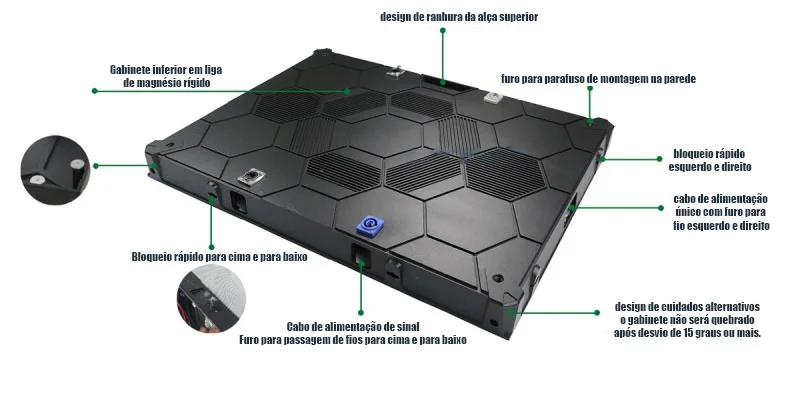

- The 640 x 480 mm magnesium alloy enclosure is lightweight, weighing 7.5 kg and measuring just 48 mm thick. The quick and precise lock ensures perfect alignment, while the ergonomic handles make installation and transport quick and safe.

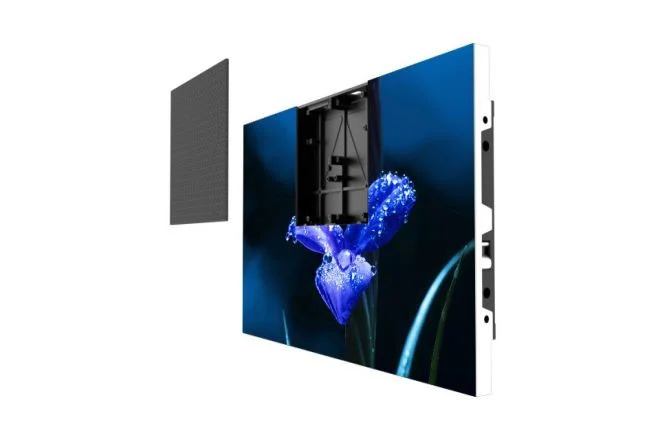

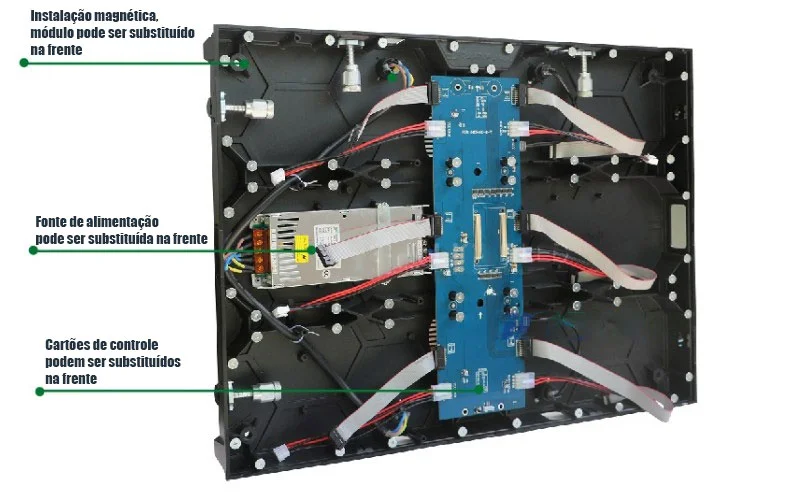

- Magnetic LED modules detach in less than 5 seconds for quick front access to all components, saving time and eliminating the need for rear access.
- It uses precision quick-release latches and internal wiring to ensure seamless alignment. The cabinets connect smoothly, providing an ultra-flat surface and a flawless viewing experience.
- LED displays are packaged according to their type and application. Complete display units are packed in wooden crates for maximum stability, while LED modules are shipped in cardboard boxes. Renmtal displays receive special treatment, typically packed in airfreight crates or simple boxes reinforced with wooden frames for extra protection.
| Item | TID 1.25 | TID 1.53 | TID 1.86 | TID 2.5 |
|---|---|---|---|---|
| Pixel pitch (mm) | P1.25mm | P1.53mm | P1.86mm | P2.5mm |
| LED | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Module resolution (points) | 256*128 | 208*104 | 172*86 | 128*64 |
| Module size (mm) | 320*160 | 320*160 | 320*160 | 320*160 |
| Cabinet Resolution (points) | 512*384 | 416*312 | 344*258 | 256*192 |
| Cabinet Size (mm) | 640mm*480mm*(WxH) | 640mm*480mm*(WxH) | 640mm*480mm*(WxH) | 640mm*480mm*(WxH) |
| Pixel density (dots/pc) | 196608 | 129792 | 88752 | 49152 |
| Ease of maintenance | Full front-end service | Full front-end service | Full front-end service | Full front-end service |
| Protection level (front/rear) | IP50 | IP50 | IP50 | IP50 |
| Weight | 7.5 kg | 7.5 kg | 7.5 kg | 7.5 kg |
| Gray level (bit) | 14 | 14 | 14 | 14 |
| Brightness (cd/㎡) | 650 | 650 | 750 | 800 |
| Contrast | 6000:1 | 6000:1 | 6000:1 | 6000:1 |
| Color range | ≥90% NTSC | ≥90% NTSC | ≥90% NTSC | ≥90% NTSC |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Vertical viewing angle | 140° | 140° | 140° | 140° |
| Brightness uniformity | ≥95% | ≥95% | ≥95% | ≥95% |
