Unique advantages of the TRI series of interactive LED floors
Superior Durability

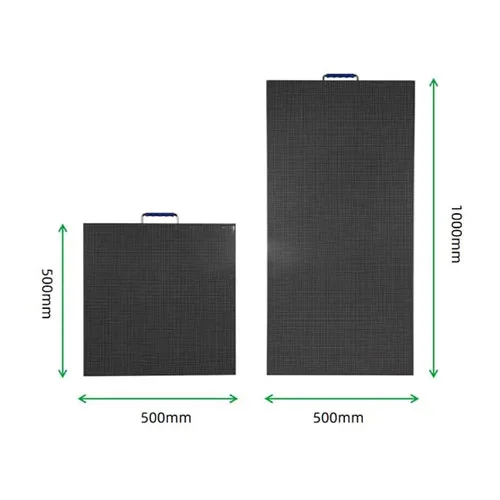

- It features durable, lightweight cabinets made of high-strength cast aluminum, weighing just 7.25 kg for the 500 x 500 mm size and 12.5 kg for the 500 x 100 mm size. Designed for seamless seams, they ensure a smooth, gap-free display.

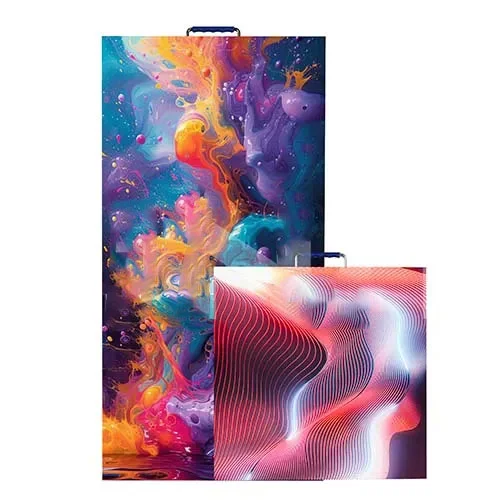

- 3-in-1 SMD LED modules deliver vibrant, colorful images with pixel pitches from 1.953mm to 4.81mm. Offering a high refresh rate of up to 7680Hz, they deliver crisp, smooth images.
Exceptional Visual Quality
- High refresh rate up to 3840-7680Hz
- Wide viewing angle of 120°-160°
Complete Adaptability
- IP65 rain/dust protection for indoor/outdoor use (-20°C to 50°C) -10°C to +40°C/14°F to 104°F.
Comprehensive Support
- 24/7 Online Remote Technical Support – Assistance whenever you need it.
- 5% of spare parts included – Extra parts supplied with every delivery for added peace of mind.
- 3-Year Extended Warranty: Enjoy long-term coverage for greater reliability and support.
Product details

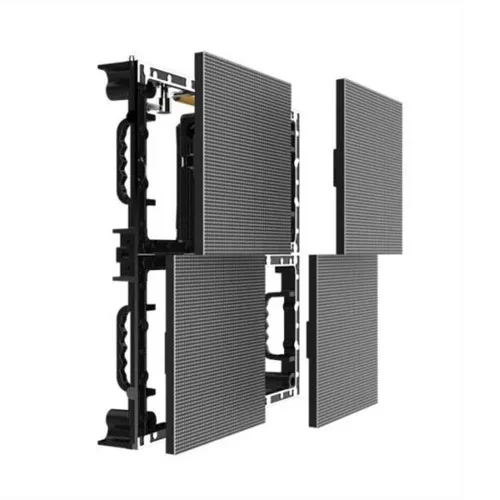

- TOA Series Outdoor LED Display Rental Module Details

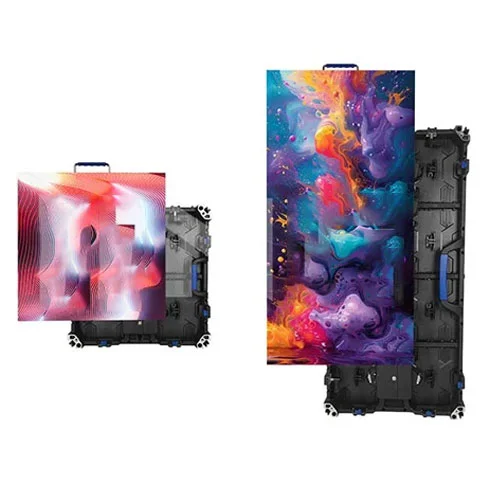

- TOA Series Outdoor LED Panel Rentals Cabinet Structure: The lightweight and durable aluminum design ensures quick installation and seamless splicing. Sturdy, stable, and built for efficiency.

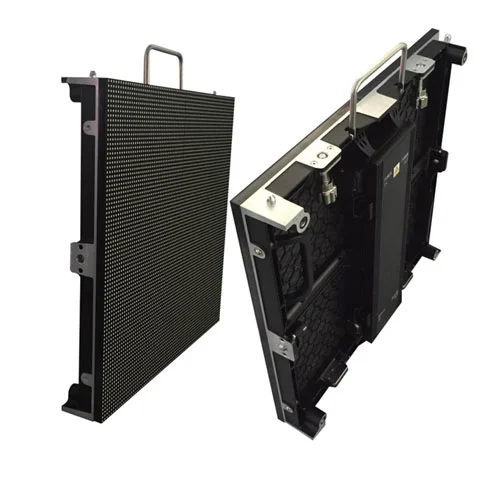

- With front and rear maintenance options, providing easy access for repairs and replacements, it ensures efficient maintenance and long-term reliability.
- LED displays are packaged according to their type and use. Complete displays are placed in wooden crates for better support. LED modules are shipped in cardboard boxes. Rental displays are handled differently; they are packaged in air freight crates. Some items are placed in simple crates, but reinforced with wooden frames for added protection.
| Model | TOA - 1,953 | TOA - 2,604 | TOA - 2,976 | TOA - 3.91mm |
|---|---|---|---|---|
| Pixels per cabinet | P1.953mm | P2.604mm | P2.976mm | P3.91mm |
| Pixel pitch (500*500mm) | 256×256 (HxV) | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) |
| Pixels per cabinet (500*1000mm) | 256×512 (HxV) | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) |
| LED lifespan | 100,000h | 100,000h | 100,000h | 100,000h |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Module resolution | 128*128dots | 96*96dots | 84*84dots | 64*64dots |
| Module resolution | ≥4500 | ≥4500 | ≥4500 | ≥4500 |
| Refresh rate | 3840-7,680Hz | 3840-7,680Hz | 3840-7,680Hz | 3840-7,680Hz |
| Horizontal viewing angle | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) |
| Vertical viewing angle | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) |
| Gray level | 14 bits | 14 bits | 14 bits | 14 bits |
| Maximum power consumption | 200 W/m² | 200 W/m² | 225 W/m² | 225 W/m² |
| Operating supply voltage | 400 W/m² | 400 W/m² | 450 W/m² | 450 W/m² |
| Operating temperature | -10°C to +40°C/14°F to 104°F | -10°C to +40°C/14°F to 104°F | -10°C to +40°C/14°F to 104°F | -10°C to +40°C/14°F to 104°F |
| Operating humidity | 10-80% | 10-80% | 10-80% | 10-80% |
| IP rating | IP65 | IP65 | IP65 | IP65 |
| Dimensions | 7.25kg (500 x 500mm cabinet)/12.5kg (500 x 1000 mm cabinet) | 7.25kg (500 x 500mm cabinet)/12.5kg (500 x 1000 mm cabinet) | 7.25kg (500 x 500mm cabinet)/12.5kg (500 x 1000 mm cabinet) | 7.25kg (500 x 500mm cabinet)/12.5kg (500 x 1000 mm cabinet) |
