Exclusive Advantages of the THO Series HD LED Panel
Superior Durability
- Made from high-strength, corrosion-resistant materials, the slim 38mm enclosure remains rigid and stable, preventing warping and maintaining precise alignment over time.
- A design COB The resin coating protects the LEDs from dust, moisture, and impact, reducing pixel damage and maintaining consistent image quality with minimal maintenance.
Exceptional Visual Quality
- Fine Pixel Pitch The 1.25 mm and 1.56 mm options provide sharp details and clear text for high-precision viewing.
- Realistic Colors: COB technology improves color accuracy and brightness consistency across the screen.
- High contrast: Reduces glare and increases depth, making visuals easier to read in any lighting.
Complete Adaptability
- Versatile Applications: Ideal for control rooms, command centers, conference rooms, and high-precision display setups.
- Flexible Integration: Slim, multi-functional design adapts to a variety of layouts, replacing multi-screen setups without the need for additional hardware.
- Reliable in Demanding Environments: Dual power and data backup enable continuous operation in mission-critical use.
Comprehensive Support
- 24/7 Remote Technical Support: Get assistance whenever you need it, wherever you are.
- 5% of spare parts supplied: Each shipment includes extra components for added reliability and peace of mind.
- 3-Year Extended Warranty: Benefit from long-term protection for better performance and reliable support.
Product details

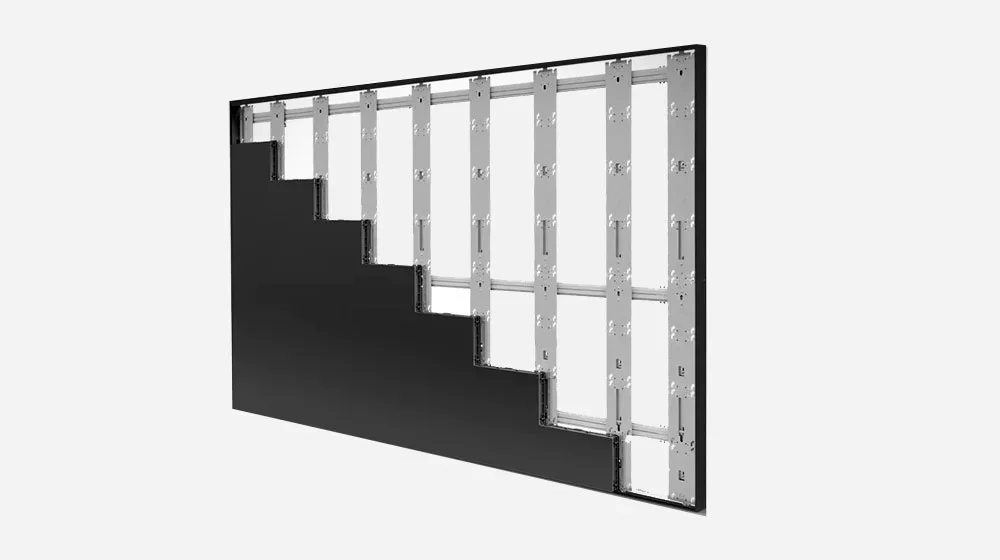

- Designed for front access, the 100% LED modules use magnetic fastening for quick maintenance. The panel frame can be attached directly to the plywood wall with screws. Frame bars are provided for precise positioning and secure installation.
- The 21:9 display offers more horizontal space for multitasking, creative work, gaming, and movies. It offers a wider view without black bars and can replace dual-monitor setups.

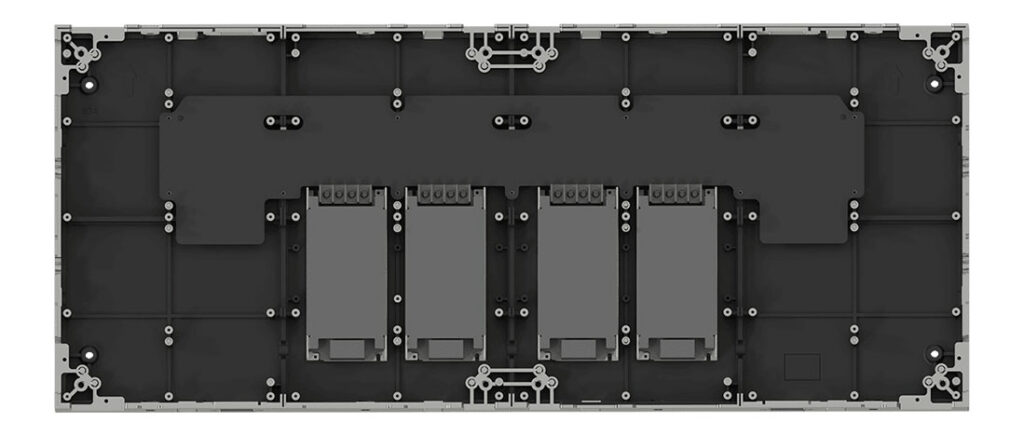

- Dual power and data backups maintain stable and reliable performance, ideal for control rooms and other high-demand environments where downtime is not an option.
- LED displays are packaged according to their type and application. Complete display units are packed in wooden crates for maximum stability, while LED modules are shipped in cardboard boxes. Renmtal displays receive special treatment, typically packed in airfreight crates or simple boxes reinforced with wooden frames for extra protection.
| Model | THO 1.25 | THO 1.56 |
|---|---|---|
| Pixel pitch (mm) | 1.25 | 1.56 |
| Cabinet Resolution (L×A) | 640×270 | 512×216 |
| Module size (mm) (W×H) | 200×337.5 | 200×337.5 |
| Cabinet Size (mm) (W×H×D) | 800×337.5×38 | 800×337.5×38 |
| Brightness (nits) | Standard brightness ≤1500 High brightness ≤3500 | Standard brightness ≤1500 High brightness ≤3500 |
| Grayscale (bit) | 14~16 | 14~16 |
| Pixel Calibration | Support for brightness and color calibration | Support for brightness and color calibration |
| Color temperature (K) | 2000~12000 (adjustable) | 2000~12000 (adjustable) |
| Control system | Synchronous control | Synchronous control |
| Driving mode | Constant current drive (compatible) | Constant current drive (compatible) |
| Frame rate (Hz) | 50/60 | 50/60 |
| Refresh rate (Hz) | ≥3840 | ≥3840 |
| Working voltage (V) | AC100~240V (50~60Hz) | AC100~240V (50~60Hz) |
| Maximum energy consumption (W/m²) | ≤450 | ≤450 |
| Average energy consumption (W/m²) | ≤180 | ≤180 |
| Useful life (H) | ≤100,000 | ≤100,000 |
| Operating temperature (°C / °F) | -10~+40 / +14~+104 | -10~+40 / +14~+104 |
| Storage temperature (°C / °F) | -20~+60 / -4~+140 | -20~+60 / -4~+140 |
| Operating humidity | 10%~80% | 10%~80% |
| Cabinet weight (kg/lbs) | 6.8 / 15 | 6.8 / 15 |
