Exclusive Advantages of the TTD Series Flexible Curtain LED Panel
Superior Durability
- Constructed with high-quality materials to withstand harsh weather conditions, including sunlight, rain, and dust. Its durable construction ensures minimal maintenance and reliable performance.
- LED modules are designed for superior durability, delivering consistent performance over time. Engineered to withstand challenging, high-impact environments, these modules are built to withstand wear and tear.
Exceptional Visual Quality
- High-brightness external LED modules for crisp, clear images.
- Maintains vivid, accurate colors in direct sunlight.
- Uniform brightness across the screen for balanced visuals.
- Stable imaging performance in all weather and lighting conditions.
Complete Adaptability

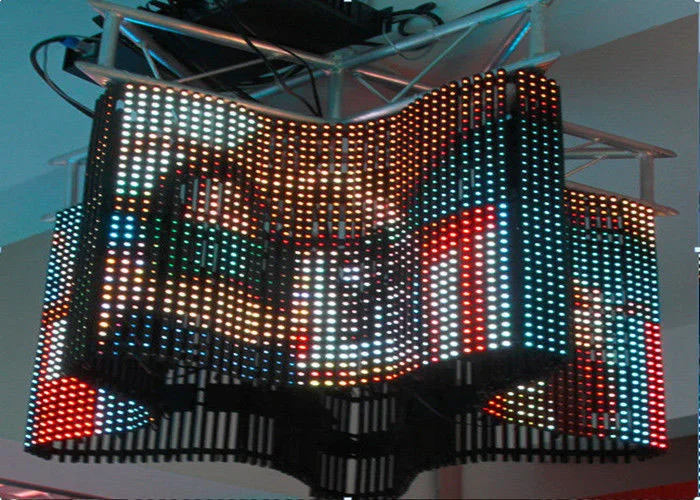

- Flexible configurations: Easily customizable in size, shape, and orientation for any installation.
- Adjustable pixel pitches: Choose from multiple pixel pitches to suit your project needs.
- Modular design: designed for seamless integration into diverse structures.
- Custom solution: Ensures perfect fit and performance for unique project requirements.
Comprehensive Support
- 24/7 Remote Technical Support: Access expert assistance anytime, anywhere.
- 5% of spare parts included: Each order includes additional components to increase reliability and provide peace of mind.
- 3-Year Extended Warranty: Enjoy long-term convergence for better performance and reliable service.
Product details

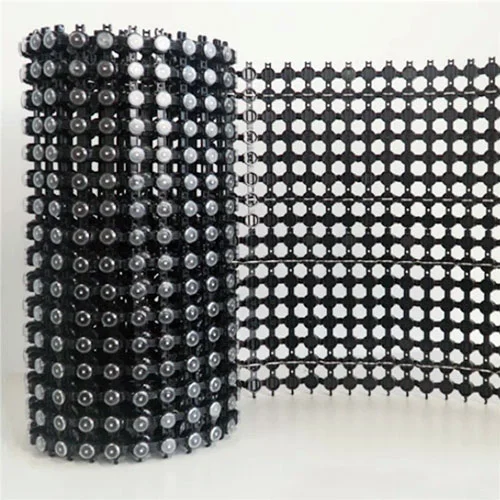

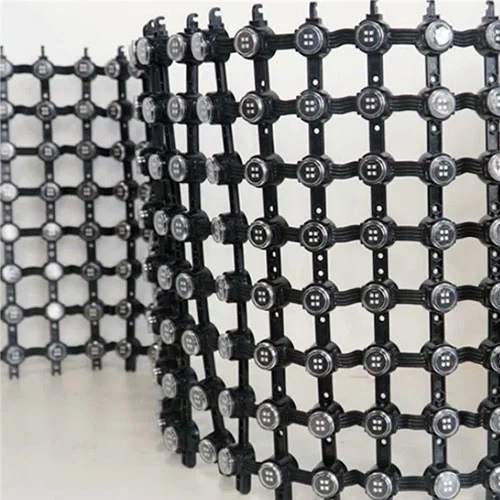

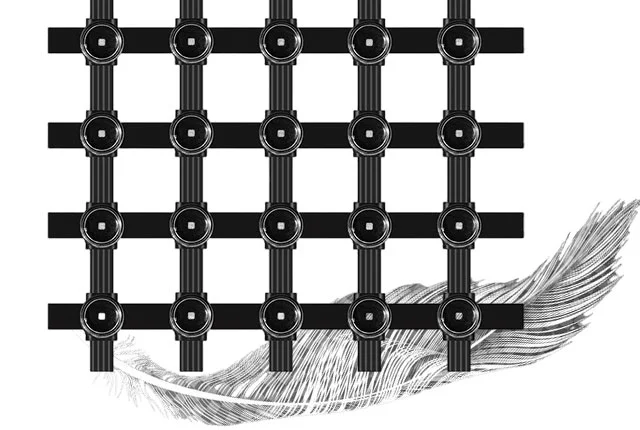

- It features a lightweight design for quick and easy installation. Its modular structure reduces installation time and labor costs, allowing for flexible positioning without compromising stability or performance.

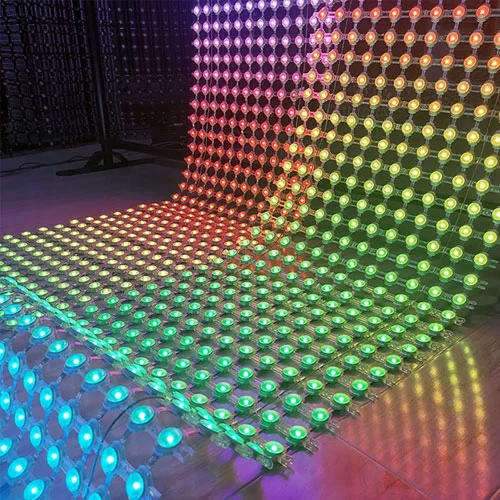

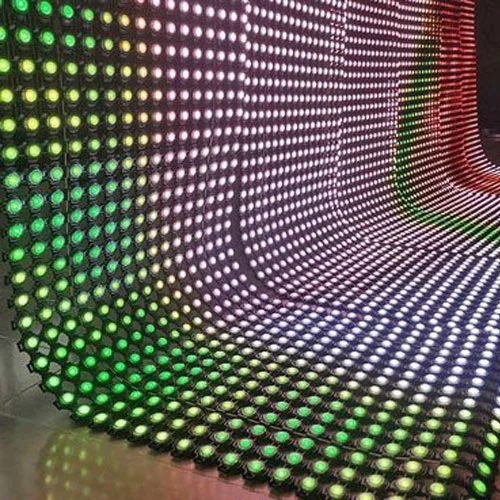

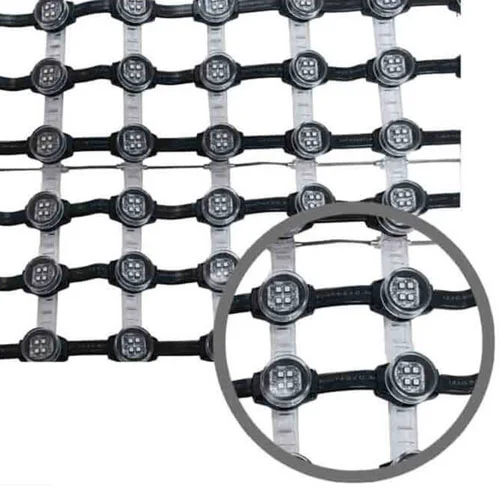

- Its transparent design ensures optimal visibility, allowing for vibrant displays without obstructing natural light or vision. Its flexible configuration offers endless creative possibilities.

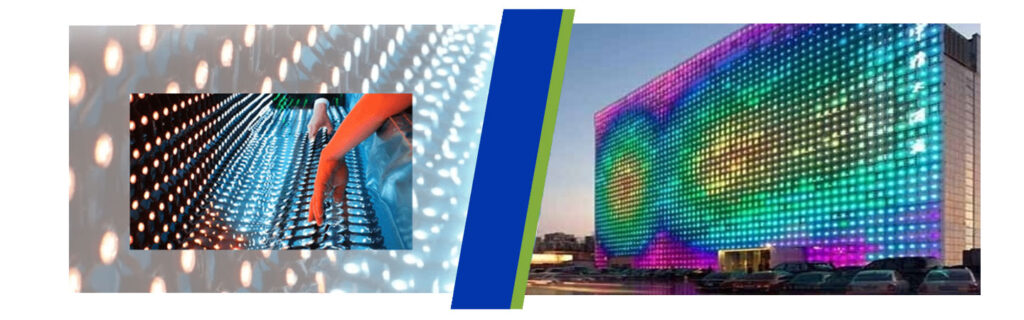

- It features an IP66 waterproof rating, ensuring reliable protection against dust and harsh weather conditions. Perfect for outdoor installations, it offers durable, long-lasting performance.
- It offers customized solutions to meet your specific needs, providing flexibility in size, pixel pitch and design. With customizable features, it ensures a perfect fit for any project, providing a unique and flawless display.
- You LED displays They are packaged according to their type and intended application. Fully assembled units are packed in wooden crates or reinforced cardboard packaging to ensure stability during transport. LED modules receive extra protection, often packed in reinforced boxes or sealed crates with additional wooden framing, which increases safety.
| Product model | TTD-1Dot-40 | TTD-1Dot-50 | TTD-1Dot-62.5 | TTD-1Dot-55 | TTD-1Dot-75 | TTD-1Dot-100 |
|---|---|---|---|---|---|---|
| Pixel pitch (mm) | 40 | 50 | 55 | 62.5 | 75 | 100 |
| Pixel Density (Dots/m²) | 625 | 400 | 330 | 256 | 178 | 100 |
| Brightness (Cd/m²) | 1,875 | 1,200 | 1,000 | 768 | 530 | 300 |
| Maximum module size (m) | 0.32x13.2 | 0.4x16.5 | 0.44x18 | 0.5x20.6 | 0.6x24.8 | 0.4x33 |
| Maximum energy consumption (W/m²) | 282 | 180 | 149 | 116 | 80 | 45 |
| Average energy consumption (W/m²) | 94 | 60 | 50 | 39 | 27 | 15 |
| Transparency (%) | 54 | 63 | 66 | 70 | 75 | 80 |
| Screen weight (kg/m²) | 6.3 | 4.26 | 4.2 | 3.25 | 2.74 | 2.3 |
| Module Resolution | 8x330 Dots Max | 8x330 Dots Max | 8x330 Dots Max | 8x330 Dots Max | 8x330 Dots Max | 4x330Dots Max |
| Subcontroller | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg |
| Unit energy consumption (W/m²) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
| Point size | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm |
| Driving IC | UCS5603A | UCS5603A | UCS5603A | UCS5603A | UCS5603A | UCS5603A |
| Video source | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA |
| LED Type | Nationstar RGB 3-in-1 SMD3535*1 Gold Wire | Nationstar RGB 3-in-1 SMD3535*1 Gold Wire | Nationstar RGB 3-in-1 SMD3535*1 Gold Wire | Nationstar RGB 3-in-1 SMD3535*1 Gold Wire | Nationstar RGB 3-in-1 SMD3535*1 Gold Wire | Nationstar RGB 3-in-1 SMD3535*1 Gold Wire |
| Viewing angle | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) |
| Grayscale | 12bit | 12bit | 12bit | 12bit | 12bit | 12bit |
| Display scale | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Control system | New | New | New | New | New | New |
| Signal Transmission | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic |
| Input voltage | AC110~240V, 50/60Hz, (9DC7.5/12V) | AC110~240V, 50/60Hz, (9DC7.5/12V) | AC110~240V, 50/60Hz, (9DC7.5/12V) | AC110~240V, 50/60Hz, (9DC7.5/12V) | AC110~240V, 50/60Hz, (9DC7.5/12V) | AC110~240V, 50/60Hz, (9DC7.5/12V) |
| Work environment | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR |
| IP rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Operational life (hours) | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Product model | TTD-2Dot-40 | TTD-2Dot-50 | TTD-2Dot-55 | TTD-2Dot-62.5 | TTD-2Dot-75 | TTD-2Dot-100 |
| Pixel pitch (mm) | 40 | 50 | 55 | 62.5 | 75 | 100 |
| Pixel Density (Dots/m²) | 625 | 400 | 330 | 256 | 178 | 100 |
| Brightness (Cd/m²) | 3,750 | 2,400 | 1,980 | 1,500 | 1,000 | 600 |
| Maximum module size (m) | 0.32x10 | 0.4x12.5 | 0.44x13.8 | 0.5x15.6 | 0.6x18.75 | 0.4x25 |
| Maximum energy consumption (W/m²) | 375 | 240 | 198 | 154 | 107 | 60 |
| Average energy consumption (W/m²) | 125 | 80 | 66 | 52 | 36 | 20 |
| Transparency (%) | 54 | 63 | 66 | 70 | 75 | 80 |
| Screen weight (kg/m²) | 6.3 | 4.26 | 4.2 | 3.25 | 2.74 | 2.3 |
| Module Resolution | 8x250 Dots Max | 8x250 Dots Max | 8x250 Dots Max | 8x250 Dots Max | 8x250 Dots Max | 4x250 Dots Max |
| Subcontroller | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg |
| Unit energy consumption (W/m²) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Point size | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm |
| Driving IC | UCS5603A | UCS5603A | UCS5603A | UCS5603A | UCS5603A | UCS5603A |
| Video source | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA |
| LED Type | Nationstar SMD3535*2 RGB 3-in-1 Gold Wire | Nationstar SMD3535*2 RGB 3-in-1 Gold Wire | Nationstar SMD3535*2 RGB 3-in-1 Gold Wire | Nationstar SMD3535*2 RGB 3-in-1 Gold Wire | Nationstar SMD3535*2 RGB 3-in-1 Gold Wire | Nationstar SMD3535*2 RGB 3-in-1 Gold Wire |
| Viewing angle | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) |
| Grayscale | 12bit | 12bit | 12bit | 12bit | 12bit | 12bit |
| Display scale | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Control system | New | New | New | New | New | New |
| Signal Transmission | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic |
| Input voltage | AC110~240V, 50/60Hz, (DC12V) | AC110~240V, 50/60Hz, (DC12V) | AC110~240V, 50/60Hz, (DC12V) | AC110~240V, 50/60Hz, (DC12V) | AC110~240V, 50/60Hz, (DC12V) | AC110~240V, 50/60Hz, (DC12V) |
| Work environment | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR |
| IP rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Operational life (hours) | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Product model | TTD-4Dot-40 | TTD-4Dot-50 | TTD-4Dot-55 | TTD-4Dot-62.5 | TTD-4Dot-75 | TTD-4Dot-100 |
| Pixel pitch (mm) | 40 | 50 | 55 | 62.5 | 75 | 100 |
| Pixel Density (Dots/m²) | 625 | 400 | 330 | 256 | 178 | 100 |
| Brightness (Cd/m²) | 6,250 | 4,000 | 3,380 | 2,560 | 1,780 | 1,000 |
| Maximum module size (m) | 0.32x6.64 | 0.4x8.3 | 0.44x9.13 | 0.5x10.375 | 0.6x12.45 | 0.4x16.6 |
| Maximum energy consumption (W/m²) | 563 | 360 | 297 | 231 | 160 | 90 |
| Average energy consumption (W/m²) | 188 | 120 | 99 | 77 | 53 | 30 |
| Transparency (%) | 54 | 63 | 66 | 70 | 75 | 80 |
| Screen weight (kg/m²) | 6.3 | 4.26 | 4.2 | 3.25 | 2.74 | 2.3 |
| Module Resolution | 8x166Dots Max | 8x166Dots Max | 8x166Dots Max | 8x166Dots Max | 8x166Dots Max | 4x166Dots Max |
| Subcontroller | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg |
| Unit energy consumption (W/m²) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Point size | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm |
| Driving IC | UCS5603A | UCS5603A | UCS5603A | UCS5603A | UCS5603A | UCS5603A |
| Video source | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA |
| LED Type | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire |
| Viewing angle | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) |
| Grayscale | 12bit | 12bit | 12bit | 12bit | 12bit | 12bit |
| Display scale | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Control system | New | New | New | New | New | New |
| Signal Transmission | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic |
| Input voltage | AC110~240V, 50/60Hz, (DC15V) | AC110~240V, 50/60Hz, (DC15V) | AC110~240V, 50/60Hz, (DC15V) | AC110~240V, 50/60Hz, (DC15V) | AC110~240V, 50/60Hz, (DC15V) | AC110~240V, 50/60Hz, (DC15V) |
| Work environment | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR |
| IP rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Operational life (hours) | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Product model | TTD-6Dot-50 | TTD-6Dot-55 | TTD-6Dot-62.5 | TTD-6Dot-75 | TTD-6Dot-100 | |
| Pixel pitch (mm) | 50 | 55 | 62.5 | 75 | 100 | |
| Pixel Density (Dots/m²) | 400 | 330 | 256 | 178 | 100 | |
| Brightness (Cd/m²) | 6,000 | 4,950 | 3,840 | 2,670 | 1,500 | |
| Maximum module size (m) | 0.4x5.8 | 0.44x6.38 | 0.5x7.25 | 0.6x8.7 | 0.4x11.6 | |
| Maximum energy consumption (W/m²) | 520 | 429 | 333 | 232 | 130 | |
| Average energy consumption (W/m²) | 174 | 143 | 111 | 78 | 44 | |
| Transparency (%) | 63 | 66 | 70 | 75 | 80 | |
| Screen weight (kg/m²) | 4.26 | 4.2 | 3.25 | 2.74 | 2.3 | |
| Module Resolution | 8x166Dots Max | 8x166Dots Max | 8x166Dots Max | 8x166Dots Max | 4x166Dots Max | |
| Subcontroller | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg | |
| Unit energy consumption (W/m²) | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | |
| Point size | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | L20xW18xH14 (mm) D18mm | |
| Driving IC | UCS5603A | UCS5603A | UCS5603A | UCS5603A | UCS5603A | |
| Video source | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | DVI, HDMI, VGA | |
| LED Type | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | Nationstar RGB 3-in-1 SMD2727*4 Gold Wire | |
| Viewing angle | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | 120° (H) / 120° (V) | |
| Grayscale | 12bit | 12bit | 12bit | 12bit | 12bit | |
| Display scale | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion | 68.7 billion | |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | |
| Control system | New | New | New | New | New | |
| Signal Transmission | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | CAT: 80m or Fiber Optic | |
| Input voltage | AC110~240V, 50/60Hz, (DC15V) | AC110~240V, 50/60Hz, (DC15V) | AC110~240V, 50/60Hz, (DC15V) | AC110~240V, 50/60Hz, (DC15V) | AC110~240V, 50/60Hz, (DC15V) | |
| Work environment | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | Temperature -30°C ~ 60°C, Humidity 10% ~ 90%UR | |
| IP rating | IP66 | IP66 | IP66 | IP66 | IP66 | |
| Operational life (hours) | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
