Unique Advantages of the TTF Series Transparent Cylindrical LED Panel
Superior Durability
- Reinforced cylindrical structure: prevents bending and keeps the screen stable during long-term use.
- High-quality LED modules: maintain brightness and clarity even in continuous operation.
- Custom design options: Allows for size flexibility while preserving structural strength.
Exceptional Visual Quality
- Fine Pixel Pitch options (1.9mm to 15.6mm) deliver sharp, detailed images suitable for both close-up viewing and large-scale displays.

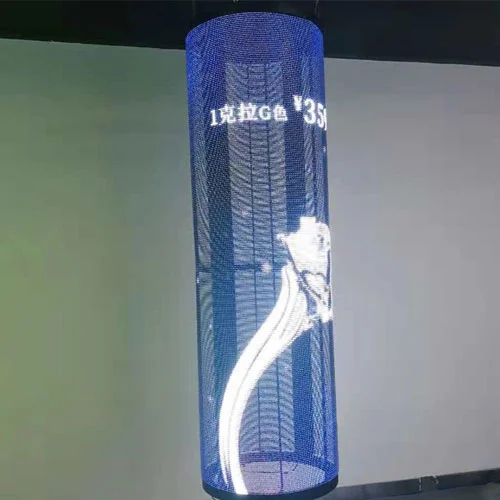

- 360° omnidirectional design: Ensures audiences see crisp, vibrant images from every angle.

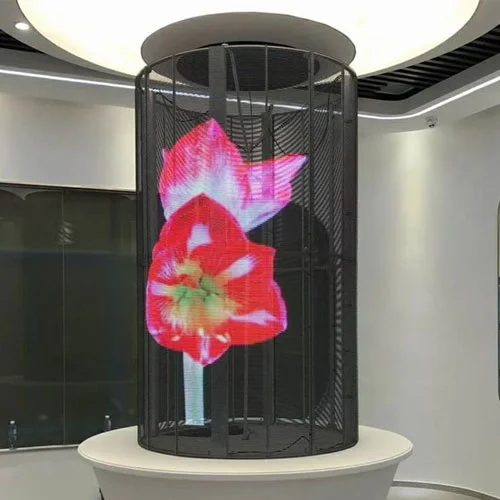

- High levels of transparency: Allows for the integration of light and background, producing vivid content without blocking natural views.
Complete Adaptability
- Customizable diameters starting at 640 mm give you the freedom to design everything from compact retail spaces to large-scale installations.
- The pixel pitch range of 1.9mm to 16.5mm allows precise adjustments for viewing distance and visual performance needs.

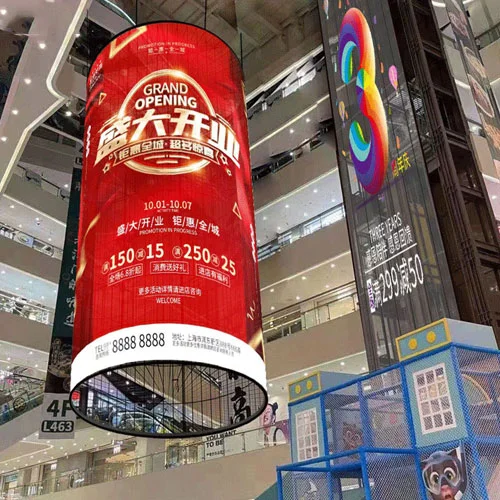

- Support for indoor and outdoor applications makes the display versatile for shopping malls, exhibitions, airports and event venues.
Comprehensive Support
- 24/7 Remote Technical Support: Access expert assistance anytime, anywhere.
- 5% of spare parts included: Each order includes additional components to increase reliability and provide peace of mind.
- 3-Year Extended Warranty: Enjoy long-term convergence for better performance and reliable service.
Product details

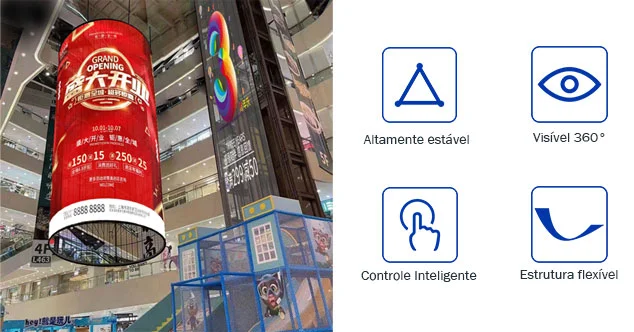

- It comes with an advanced control system that allows for remote and in-person video management. Using an intuitive platform, you can upload and manage content across multiple displays, schedule playback, and maintain reliable performance. Its stable control functions provide peace of mind, while 360° visibility ensures strong audience engagement.

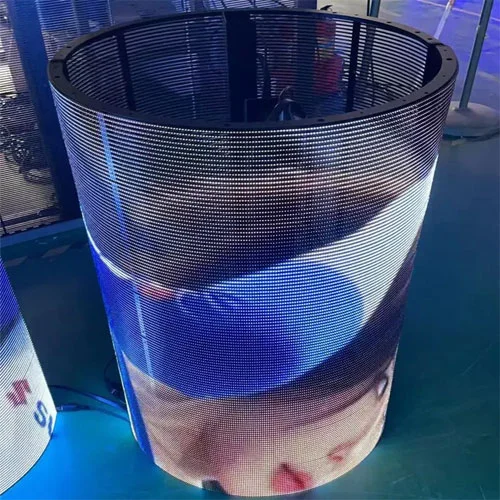

- It features a flexible module design that makes it suitable for creative, circular display configurations. Its flexible yet robust structure allows for smooth, fluid screen formats that adapt to different layouts.

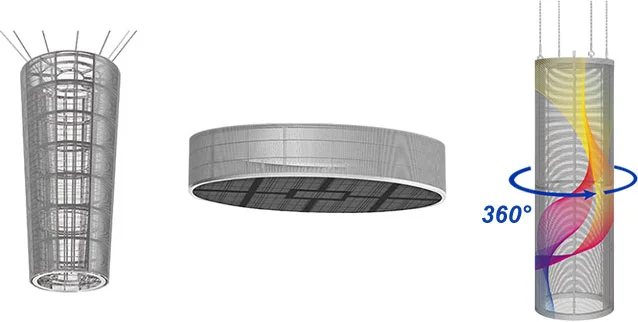

- It offers a 360-degree panoramic display, capturing attention from every angle. Its ultra-fine 1.9mm pixel pitch ensures crisp, high-definition visuals, making it ideal for creating immersive environments.
- LED displays are packaged according to their type and purpose. Fully assembled units are typically shipped in wooden crates or reinforced cardboard boxes to maintain stability during transport. To protect against dust mites, LED modules are often packaged in reinforced boxes or sealed wooden frames. This method increases durability during handling and overall safety.
| Product model | TTF 1 | TTF 2 | TTF 3 | TTF 5 | TTF 8 | TTF 10 | TTF 15 |
|---|---|---|---|---|---|---|---|
| Pixel pitch (mm) | 1.9*3.9 | 2.8*5.6 | 3.9*7.8 | 5.2*10.4 | 7.8*7.8 | 10.4*10.4 | 15.625*15.625 |
| Pixel density (dot/m²) | 129,024 | 61,952 | 32,768 | 18,432 | 16,384 | 9,216 | 4,096 |
| Module resolution (points) | 252*16 | 176*22 | 128*16 | 96*12 | 64*16 | 48*12 | 32*8 |
| Cabinet Resolution (points) | 504*128 | 352*88 | 256*64 | 192*48 | 128*64 | 96*48 | 64*32 |
| Transparency | 42% | 45% | 65% | 75% | 65% | 75% | 85% |
| Brightness (nits) | 800~4,500 | 800~5,500 | 800~5,500 | 800~5,500 | 800~5,500 | 800~6,500 | 800~6,500 |
| Power requirements | 220V±10%; AC50Hz | 220V±10%; AC50Hz | 220V±10%; AC50Hz | 220V±10%; AC50Hz | 220V±10%; AC50Hz | 220V±10%; AC50Hz | 220V±10%; AC50Hz |
| Energy consumption | Max.: 800 W/m² | Max.: 800 W/m² | Max.: 800 W/m² | Max.: 800 W/m² | Max.: 800 W/m² | Max.: 800 W/m² | Max.: 800 W/m² |
| Refresh rate | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz |
| Operating temperature | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C | -10°C~45°C |
| Weight | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² |
| Diameter | Min: 640mm | Min: 640mm | Min: 640mm | Min: 640mm | Min: 640mm | Min: 640mm | Min: 640mm |
