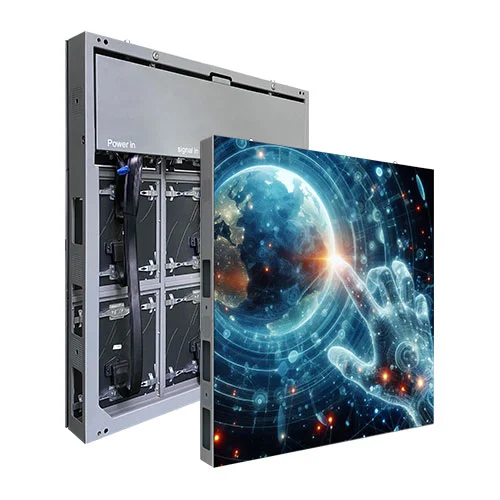

Exclusive Advantages of TOD Series Outdoor LED Panels
Superior Durability

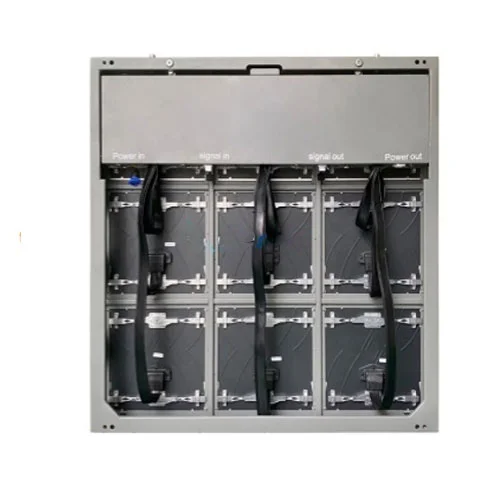

- Constructed with a cast aluminum rear frame, designed to withstand high temperatures and prevent ignition, ensuring rapid heat dissipation. The frame is made of a standard flame-retardant material, capable of operating at high temperatures without the risk of spontaneous combustion.

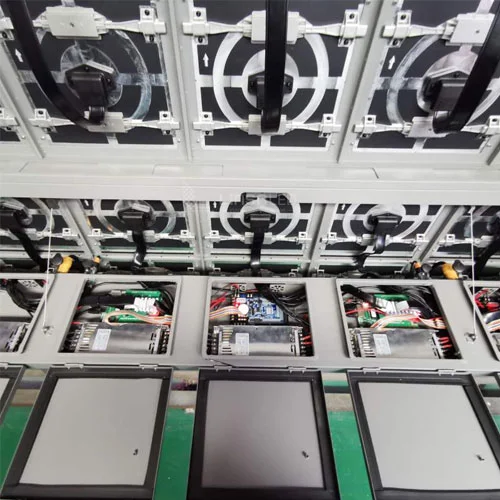

- Use separate power supplies, reducing the energy consumption and heat generation. The aluminum modules provide excellent heat dissipation, achieving up to 75% in energy savings and reducing costs.
Exceptional Visual Quality
- High refresh rate up to 1920/3840HZ
- Wide 160°/140° viewing angle
Complete Adaptability
- 100,000 lifespan.
- Brightness up to 6,000~10,000cd/m2
Comprehensive Support
- 24/7 Remote Technical Support – Available whenever you need assistance.
- 5% of spare parts included – Enjoy greater peace of mind.
- 3-Year Extended Warranty – Benefit from long-term reliability and comprehensive support.
Product details
- IP65 grade protection ensures stable operation of the display even in extreme weather conditions such as below: high temperature, low temperature and high humidity.
- Lamp feet filled with double liquid glue, ensuring superior protection and durability
- Durable and versatile sizes
- LED displays are packaged according to their type and intended use, ensuring safe transportation. Complete systems are packed in wooden crates for added stability, while individual LED modules are packed in sturdy cardboard boxes. Rental displays are shipped in special airfreight boxes for added protection. Some items are also packaged in plain boxes, but include wooden crates for added security.
| Model | TOD - 3.8 | TOD - 5.3 | TOD - 6.67 | TOD - 8 | TOD - 10 |
|---|---|---|---|---|---|
| Pixel pitch (mm) | 3.8 | 5.33 | 6.67 | 8 | 10 |
| Module size (mm) | 320×320 | 320×320 | 320×320 | 320×320 | 320×320 |
| Module resolution (points) | 84×84 | 60×60 | 48×48 | 40×40 | 32×32 |
| Cabinet size (mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Cabinet Resolution (points) | 252×252 | 180×180 | 144×144 | 120×120 | 96×96 |
| Cabinet Weight (kg) | 32 | 32 | 32 | 32 | 32 |
| Pixel Density (Pixel/㎡) | 69,696 | 35,344 | 22,500 | 15,625 | 10,000 |
| Shine (Nits) | 6,000~ 10,000 | 6,000~ 10,000 | 6,000~ 10,000 | 6,000~ 10,000 | 6,000~ 10,000 |
| Color temperature (K) | 3,000~ 10,000 | 3,000~ 10,000 | 3,000~ 10,000 | 3,000~ 10,000 | 3,000~ 10,000 |
| Viewing Angle (W/H) | 160/140 | 160/140 | 160/140 | 160/140 | 160/140 |
| Contrast ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Frame rate | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power consumption (W/㎡) | Max: 600; Average: 200 | Max: 600; Average: 200 | Max: 600; Average: 200 | Max: 600; Average: 200 | Max: 600; Average: 200 |
| Access to the service | Front Rear | Front Rear | Front Rear | Front Rear | Front Rear |
| Lifespan (hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Working temperature (℃) | -40~70 | -40~70 | -40~70 | -40~70 | -40~70 |
| Working humidity (%) | 0~90 | 0~90 | 0~90 | 0~90 | 0~90 |
