Main Applications:
- Retail Advertising: Ideal for stores and malls where detailed, eye-catching content helps attract customers.
- Broadcast Studios: Flicker-free high-resolution display suitable for live and recorded content.
- Control Rooms: Clear and accurate visuals for monitoring critical data and video.
- Conference Scenarios: Sharp, flawless screens that aid professional presentations.
Proven Technology:
- IP40/IP50 – Dust and moisture resistance.
- 16-bit gradient (281 trillion colors). – Photorealistic.
- CE/RoHS/ISO9001 certification – Industrial quality guaranteed.
| Technical details | |||
|---|---|---|---|

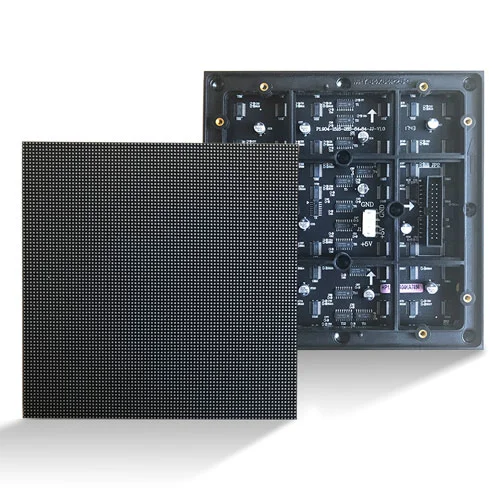

| Model Number | TL – P1.904 LED Panel Module | ||
| Brand Name | TELALED Manufacturer | Screen Flatness | <±1mm |
| Place of Origin | Guangdong, China | Mean Time Between Failures (MTBF) | 10,000 Hours |
| Pixel Distance | P1.904 | Useful Life | 100,000 Hours |
| Minimum Viewing Distance | 1.9m | Display Operating Voltage | AC46～54HZ, 220V±15%/110V±15% |
| LED configuration | SMD1515 | Light Attenuation | ＜3% |
| Module Resolution | 84×84 pixels | Leakage Current | ＜3mA |
| Module Pixels | 7056 pixels | IP Protection Rating | Rear: IP40 / Front: IP50 |
| Module Size | W160mm*H160mm*T14 | Temperature and Humidity of the Work Environment | Temp.: -20°C~+60°C / Humidity: 10%~90% RH |
| Cabinet Size | 640mm*640mm | Supported Media | Technical data, Photos, CAD models, Video |
| Pixel Configuration | SMD3in1, Full Color R/G/B 1,1,1 | Function | SDK |
| Balanced Shine | 1000cd/㎡ for indoor environments | Control Mode | Synchronization via DVI with control PC |
| Drive Method | 1/28 scan | Supported Software | Windows XP/W7/Vista |
| Update Rate | ≥1920 Hz | Control System | DVI card + full color controller + optical fiber (optional) |
| Change Detection Frequency | 50-60Hz | Main Control System Mark | Novastar, Linsn, Huidu, Colorlight |
| Viewing Angle | H140° V120° | Interface | Standard Ethernet |
| Inactive Light Rate | ≤1% | Transmission Distance | Multimode fiber <500m > |
| Energy Waste | 700*1000 W/M2 | Guarantee | 5 years |
| Average Energy Consumption | 280 W/M2 | Supplier Type | Original Manufacturer/ODM/OEM |
| Gray Level | 16-bit (281 trillion colors) / 65,536 shades per primary color | Delivery time | 25 (or negotiable) |
| Display Color | 16M | Application | Advertising/Interior/Exterior |
| Uninterrupted Working Hours | ≥72 hours | Use | Digital Advertising, Shopping Malls, Welcome Displays, Exhibition Halls, Airports, Churches, Sports, Events, Meetings, Rentals, Stages, Automotive, Retail, Weddings |
| Discrete Blind Spot Rate | <1> | Packaging Details | Reinforced cardboard box + wood |
| Continuous Blind Spot Rate | None | Supply Capacity | 5,000 units/month |
| Blind Spot Rate | <1> | Harbor | Shenzhen |
