Exclusive Advantages of TTI Series LED Film Screen
Superior Durability
- The lightweight aluminum alloy frame protects the LED film while keeping it slim.
- High-quality LED modules offer a lifespan of over 100,000 hours with stable performance.
- Dust and heat resistant design allows for long-term use in busy retail and transportation environments.
Exceptional Visual Quality
- Up to 98% of transparency keeps the interior illuminated while displaying vivid content.
- High brightness of up to 5,500 nits makes content visible even in bright daylight.
- The implementation of LED liquid crystal chip ensures accurate colors and smooth video playback.
Complete Adaptability
- The panel's ultra-thin depth of approximately 30 mm makes it easy to install on glass walls.

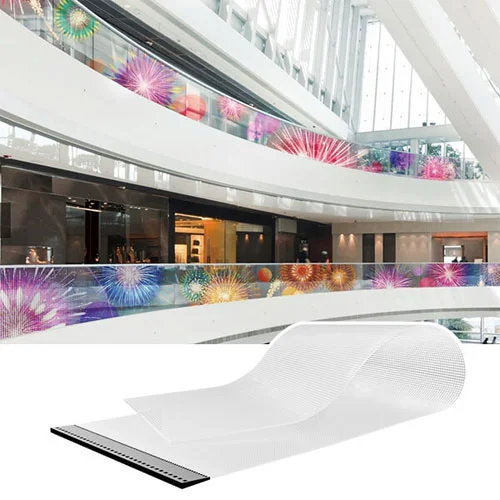

- Modular design with flexible dimensions, ideal for shop windows, shopping malls and train stations.

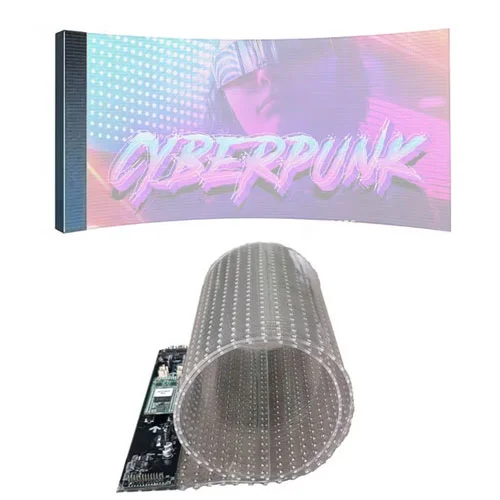

- Supports curved and creative installations to match modern architectural designs.
Comprehensive Support
- 24/7 Remote Technical Support: Access expert assistance anytime, anywhere.
- 5% of spare parts included: Each order includes additional components to increase reliability and provide peace of mind.
- 3-Year Extended Warranty: Enjoy long-term convergence for better performance and reliable service.

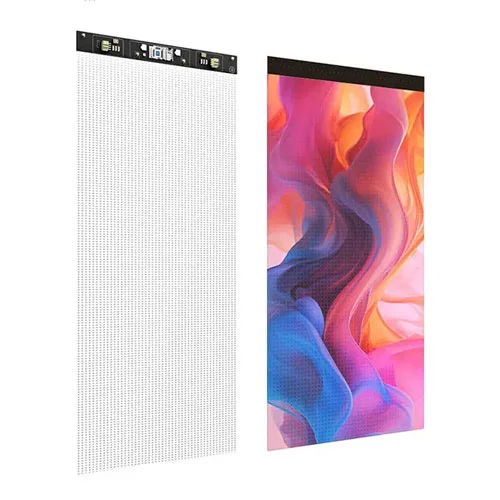

Product details

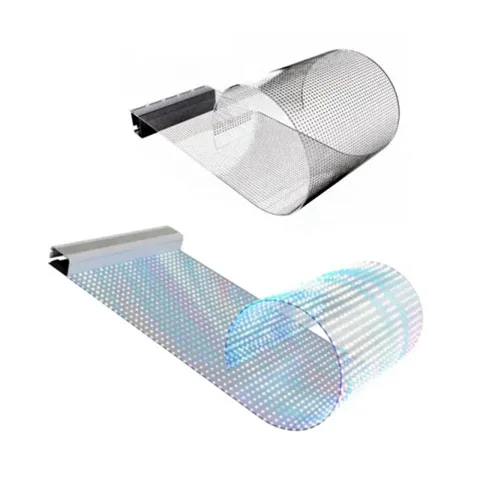

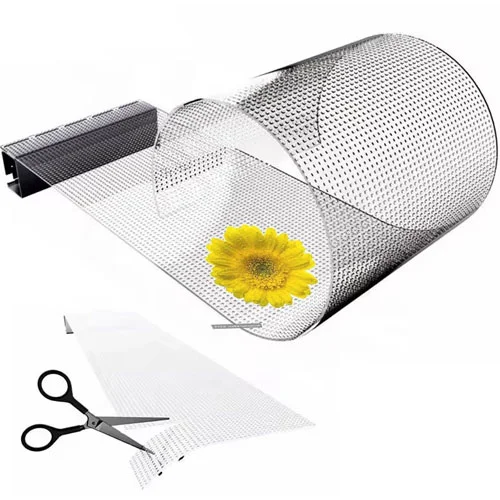

- It utilizes innovative bare crystal chip implantation, where a transparent crystal film with an engraved circuit is placed on a flexible substrate. This process ensures high transparency, clarity, and brightness.

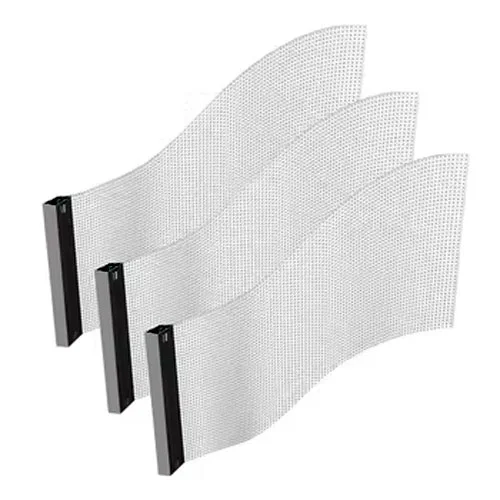

- It utilizes a specialized module splicing technique that allows for seamless horizontal expansion, offering unparalleled flexibility. This method ensures that the display can be easily customized to meet specific project or installation needs, enabling seamless integration into a variety of environments and providing a perfect fit for custom display configurations.
- Designed to meet a variety of installation needs. They can be pole-mounted for outdoor visibility, hung from the ceilings of transportation hubs and shopping malls, or installed on the ceiling to maximize space in busy areas. Each option offers crisp images, intense brightness, and reliable performance.
- LED displays are shipped with packaging tailored to your build. Units are crated in solid wood or heavy-duty reinforced cartons to keep them stable in transit. Individual LED modules are boxed in reinforced cases or secured in sealed wooden frames, which shield them from dust and impact. This approach extends service life and keeps the LED displays safe during handling and transport.
| Product model | TTI-JX0375 | TTI-JX0404 | TTI-JX0505 | TTI-JX0606 | TTI-JX7575 |
|---|---|---|---|---|---|
| Pixel pitch (mm) | 3.75*3.75 | 4*4 | 5*5 | 6.25*6.25 | 7.5*7.5 |
| Module size (mm) | 480*240 | 512*240 | 640*240 | 1000*240 | 960*240 |
| Module resolution (points) | 128*64 | 128*60 | 128*48 | 160*40 | 128*32 |
| Pixel density (dot/m²) | 71111 | 62500 | 40000 | 26666 | 10000 |
| Brightness (cd/㎡) | ≤2000 adjustable | ≤2000 adjustable | ≤2000 adjustable | ≤2000 adjustable | ≤2000 adjustable |
| Minimum radius of curvature (m) | 1m | 1m | 1m | 1m | 1m |
| Maximum Contrast Radio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| IP rating | IP40 | IP40 | IP40 | IP40 | IP40 |
| Product model | TTI-JX0808 | TTI-JX1010 | TTI-JX1515 | TTI-JX2020 | TTI-JX3030 |
| Pixel pitch (mm) | 8.125*8 | 10*10 | 15*15 | 20*20 | 30*30 |
| Module size (mm) | 1040*240 | 1040*240 | 1040*240 | 960*240 | 960*240 |
| Module resolution (points) | 128*30 | 96*24 | 64*16 | 48*12 | 32*8 |
| Pixel density (dot/m²) | 15375 | 10000 | 10000 | 2500 | 1111 |
| Brightness (cd/㎡) | ≤1500 adjustable | ≤1500 adjustable | ≤1500 adjustable | ≤1500 adjustable | ≤1500 adjustable |
| Minimum radius of curvature (m) | 1m | 1m | 1m | 1m | 1m |
| Maximum Contrast Radio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| IP rating | IP40 | IP40 | IP40 | IP40 | IP40 |
| Product Model | TTI-GG-P5-A-128X288 | TTI-GG-P5-B-128X240 | TTI-GG-P8-A-90X130 | ||
| Product size (mm) | 720*1900 | 720*1900 | 770*1220 | ||
| Screen size (mm) | 640*1440 | 640*1200 | 770*1065 | ||
| Glass thickness (mm) | 10.74 | 10.74 | 8 | ||
| Pixel point (mm) | 128x128 | 128x240 | 90x130 | ||
| Resolution (px) | 36864 | 30720 | 11700 | ||
| Maximum Power (w) | 130 | 110 | 135 | ||
| Average power (w) | 45 | 40 | 45 | ||
| Refresh rate (Hz) | ≤3840 | ≤3840 | ≤3840 | ||
| Control method | Asynchronous/Synchronous | Asynchronous/Synchronous | - | ||
| Audio format | Supports multiple audio encoding protocols | Supports multiple audio encoding protocols | - | ||
| Weight (kg) | Approx. 85 | Approx. 85 | Approx. 20 | ||
| Color | White (or customizable) | White (or customizable) | Silver | ||
| Product model | TTI-HL-P0606-C (960x1000) | TTI-HL-P0808-B (960x1040) | TTI-HL-P1010-C (960x960) | ||
| Product size (mm) | 973*1130*76 | 973*1170*76 | 973*1090*76 | ||
| Screen size (mm) | 970*1010*76 | 970*1050*76 | 970*970*76 | ||
| LED Type | Fixed | Fixed | Fixed | ||
| Pixel pitch (mm) | 6 x 6.25 | 8 x 8.125 | 10 x 10 | ||
| Cabinet Resolution (px) | 160 x 160 | 120 x 128 | 96 x 96 | ||
| Cabinet weight (kg) | 32 | 34 | 30 | ||
| Pixel density (dots/m²) | 26,666 | 15,375 | 10,000 | ||
| Brightness (cd/m²) | ≤1500 adjustable | ≤1500 adjustable | ≤1500 adjustable | ||
| Viewing angle | 170°/170° | 170°/170° | 170°/170° | ||
| Flatness | ≥90% | ≥90% | ≥90% | ||
| Color uniformity | ±0.003 within Cx, Cy | ±0.003 within Cx, Cy | ±0.003 within Cx, Cy | ||
| Contrast ratio | 4000:1 | 4000:1 | 4000:1 | ||
| IP rating | IP40 | IP40 | IP40 | ||
| Driving mode | Constant current | Constant current | Constant current | ||
| Update frequency | 60Hz; Max Frame Rate: 120Hz | 60Hz; Max Frame Rate: 120Hz | 60Hz; Max Frame Rate: 120Hz | ||
| Refresh rate (Hz) | ≤3840 | ≤3840 | ≤3840 | ||
| Screen color temperature | 2000K - 9500K adjustable | 2000K - 9500K adjustable | 2000K - 9500K adjustable | ||
| Average energy consumption | 40W/m² - 60W/m² | 50W/m² - 60W/m² | 50W/m² - 60W/m² | ||
| Product model | TTI-JH0505-A | TTI-JH7575-A | TTI-JH1010-A | TTI-JH1010-B | |
| Product size (mm) | 446.6*730 | 476.6*730 | 486.6*970 | 512.6*820 | |
| Pixel density (dots/m²) | 40,000 | 17,094 | 10,000 | 10,000 | |
| Product resolution (px) | 144*64 | 96*50 | 96*40 | 80*40 | |
| Product weight (kg) | ≤8 | ≤8 | ≤11 | ≤9 | |
| Brightness (cd/m²) | ≤2000 | ≤1300 | ≤1000 | ≤1800 | |
| Viewing angle | ≤175° | ≤175° | ≤175° | ≤175° | |
| Update frequency | 60Hz | 60Hz | 60Hz | 60Hz | |
| Refresh rate (Hz) | ≤3840 | ≤3840 | ≤3840 | ≤3840 | |
| Grayscale | ≤65536 | ≤65536 | ≤65536 | ≤65536 | |
Brightness adjustment | Manual/automatic adjustment of 0-100% | Manual/automatic adjustment of 0-100% | Manual/automatic adjustment of 0-100% | Manual/automatic adjustment of 0-100% | |
| Lifetime (hours) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | |
| Best viewing distance (m) | 5-20 | 8-30 | 10-40 | 10-40 | |
| Maximum Power (w) | 35 | 30 | 42 | 35 | |
| Average power (w) | 12 | 10 | 13 | 11 | |
| Working temperature and humidity | Temperature: -30~60°C Humidity: 10%-65% | Temperature: -30~60°C Humidity: 10%-65% | Temperature: -30~60°C Humidity: 10%-65% | Temperature: -30~60°C Humidity: 10%-65% | |
| Storage temperature and humidity | Temperature: -40~85°C Humidity: 10%-65% | Temperature: -40~85°C Humidity: 10%-65% | Temperature: -40~85°C Humidity: 10%-65% | Temperature: -40~85°C Humidity: 10%-65% |
