Exclusive Advantages of TCC Series LED Dome Screen
Superior Durability

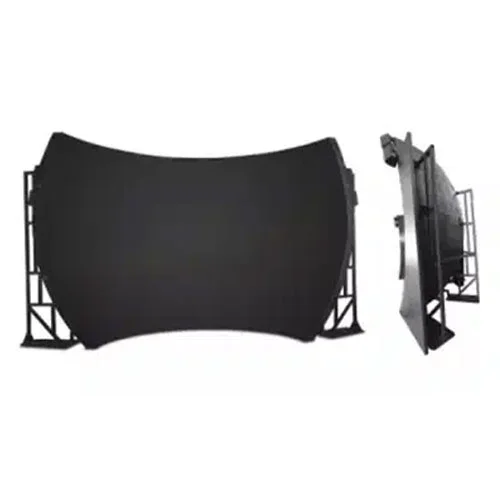

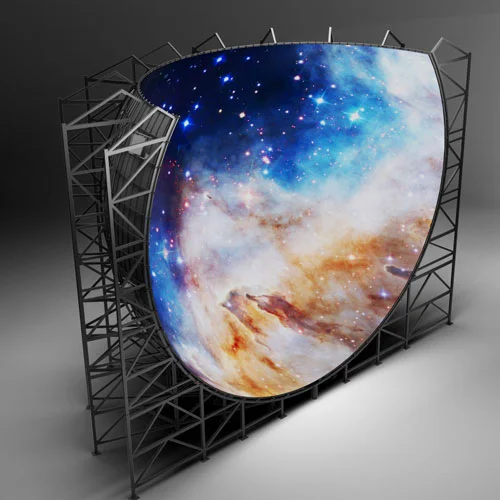

- Sturdy steel frame
- Galvanized pipes (40/80/100)
- Steel sheet 150x150x5 per m²
- Welding points with anti-rust treatment
Exceptional Visual Quality

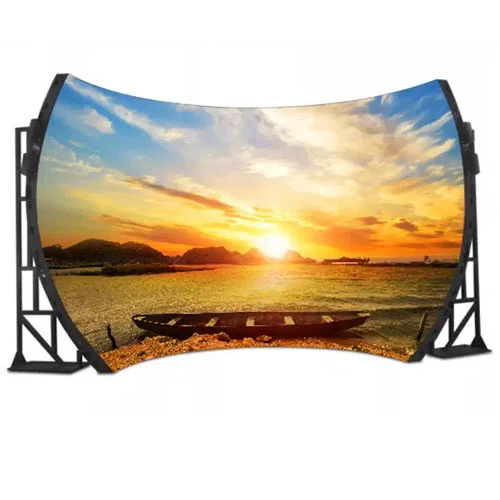

- 180º-360º curved screen
- 3D immersive effect
- Crisp visuals from every angle
Complete Adaptability

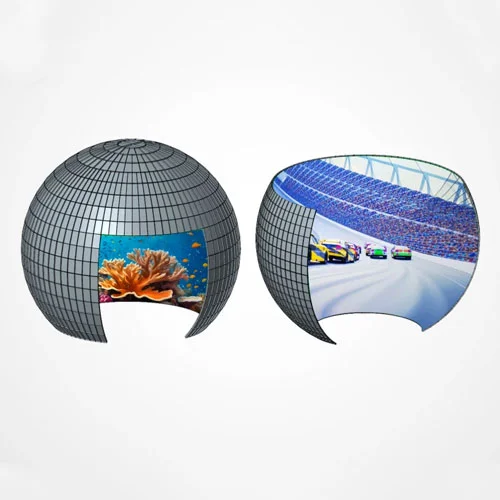

- Custom dome diameter
- Adjustable display region
- Flexible fixing position
Comprehensive Support
- 24/7 Remote Technical Support: Access expert assistance anytime, anywhere.
- 5% of spare parts included: Each order includes additional components to increase reliability and provide peace of mind.
- 3-Year Extended Warranty: Enjoy long-term convergence for better performance and reliable service.
Product details

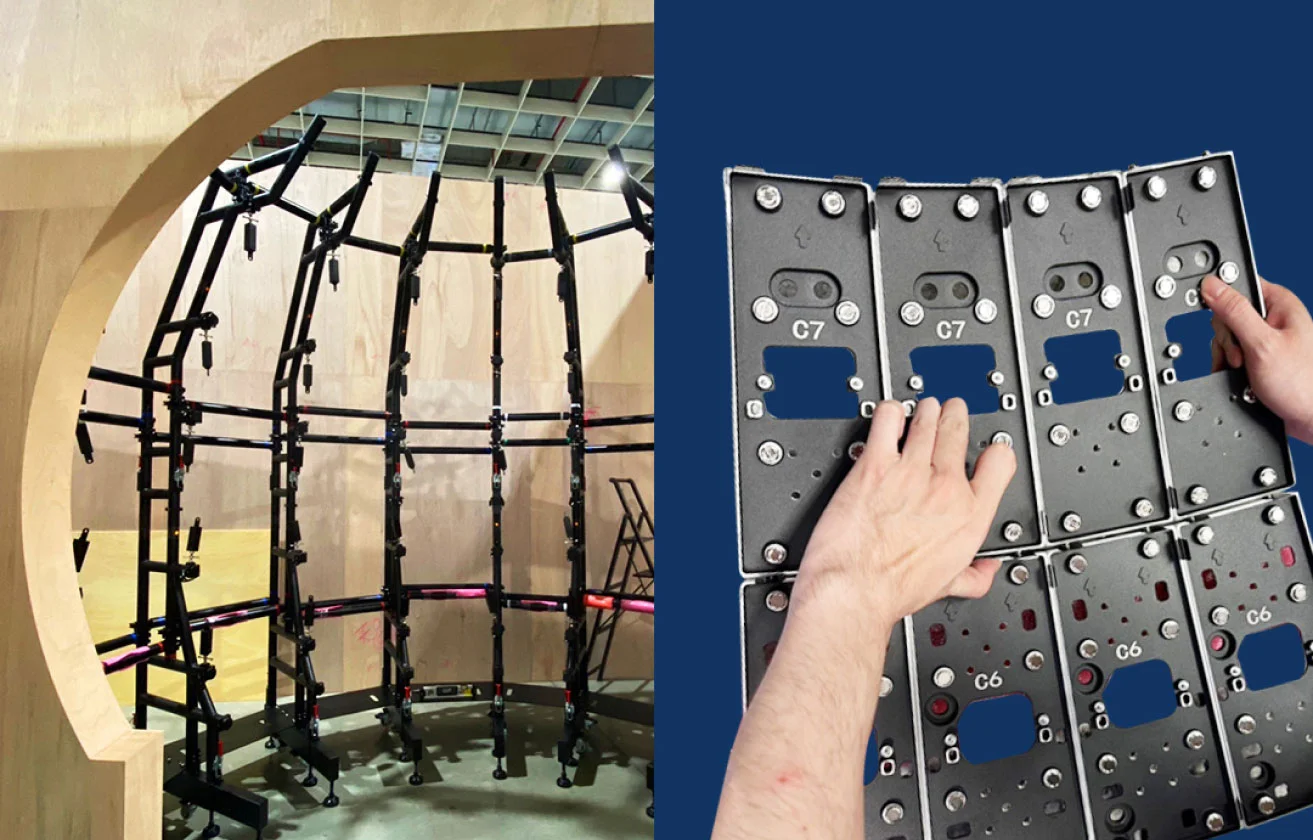

- The structure and cabinet system of our LED dome display reduce installation time and labor costs. The design is not only efficient but also accelerates project execution. This gives you a clear competitive advantage in terms of cost savings and scalability.

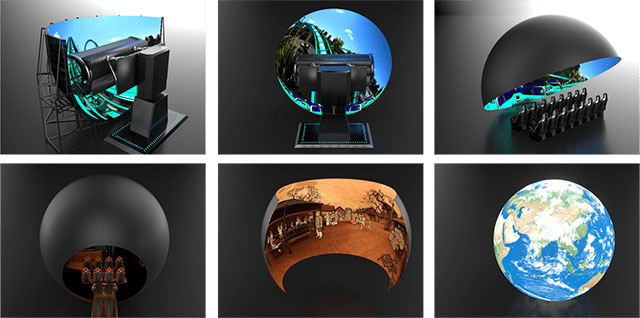

- With ultra-high-definition visuals and realistic sound, audiences are drawn into the film. The closer they get to the screen, the more intense the experience becomes.

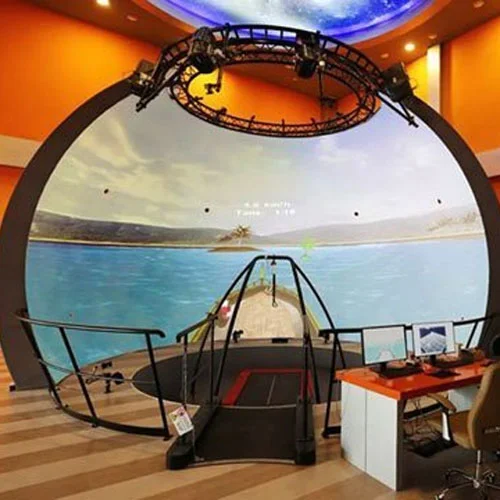

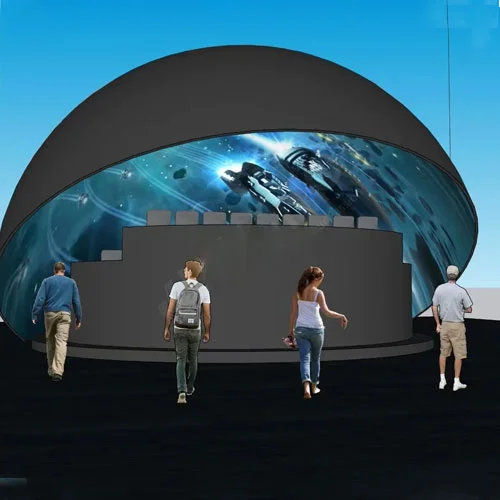

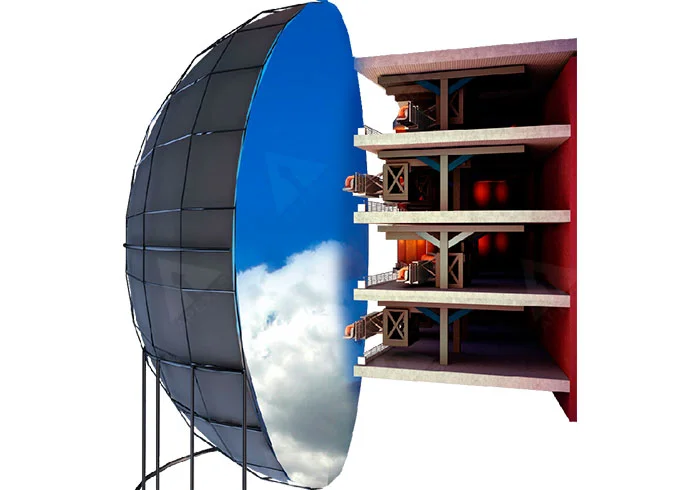

- Our TCC Series LED Dome Screen transforms your screening into a full-sensory experience. The hemispherical screen envelops the audience's vision, while moving seats, aroma effects, expansive images, and surround sound elevate the experience from 4D to 5D. From front to back, every detail immerses the audience in a vivid and relaxing scene they'll never forget.
- Our TCC Series LED Dome Screen units are securely packaged in reinforced wooden crates to protect them during transport. Each unit is protected against dust, impacts, and other hazards by being packed in protective containers. This method ensures durability and safe handling, from storage to final delivery.
| Model | TCC1.45 | TCC1.875 | TCC2 | TCC4 |
|---|---|---|---|---|
| Pixel pitch (mm) | 1.45 | 1.875 | 2 | 4 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 |
| Pixel density (dots/m²) | 475, 624 | 284,444 | 250,000 | 62500 |
| Scanning method | 1/35 | 1/32 | 1/32 | 1/16 |
| Brightness (cd/m²) | 300 | 800-1000 | 800-1000 | 800 |
| Average power (W/m²) | 140 | 150-200 | 150-200 | 150-200 |
| Max. power (W/m²) | 300 | 600 | 600 | 600 |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Grayscale (bit) | 16 | 12-16 | 12-16 | 12-16 |
| Central angle of the arc | Customized according to needs | Customized according to needs | Customized according to needs | Customized according to needs |
| LED Cabinet Weight (kg/pc) | 5 | 40 | 40 | 50 |
| Gross weight (kg/m²) | ≤60 | ≤60 | ≤60 | ≤60 |
| Continuous usage time (hours) | >72 | >72 | >72 | >72 |
| Lifetime (hours) | >10,000 | >10,000 | >10,000 | >10,000 |
| Discrete point out of control (%) | <0.01 | <0.01 | <0.01 | <0.01 |
